SDA6801N/SDA6802N

Download Brochure

Download User Manual

---

SD-SDI Equalizing Distribution Amplifier

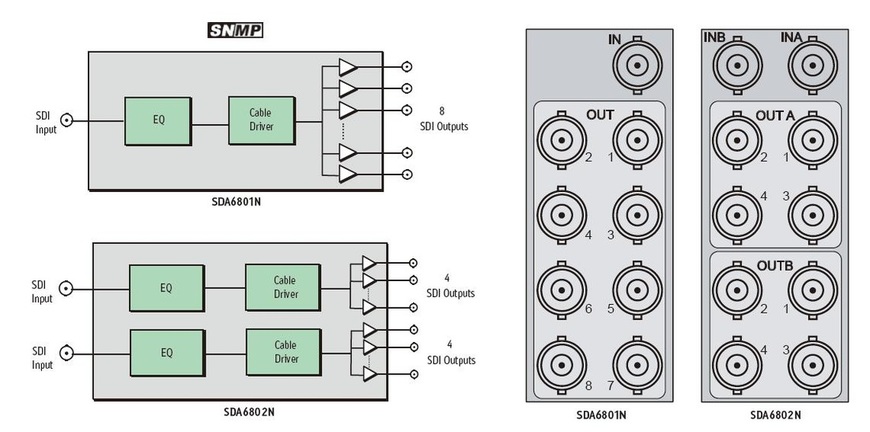

The SDA6801N/SDA6802N is a SD-SDI video distribution amplifier module with equalization, and provides a low cost solution in which reclocking is not required. These modules can compensate for 300 meter of Belden 8281 cable transmission loss. The SDA6801N has one input and eight outputs, and the SDA6802N has two inputs; each with four outputs, or it can be set for eight outputs via a jumper.

---

Features  >>>

• Low cost 8-channel SDI video distribution amplifier

• Compensating 300 meter of Belden 8281 cable transmission loss
• Input equalization

---

Specifications  >>>

SDI Video Input
Signal Type: SDI, ASI
Connector: BNC (IEC169-8)
Impedance: 75 ohm
Return Loss: >18 dB 5 MHz to 540 MHz
Cable Equalization: 300 m Belden 8281

Power Consumption
Power: SDA6801N: 1.5 W; SDA6802N: 2.2W
Positive Rail: SDA6801N: 200mA; SDA6802N: 300mA
Negative Rail: SDA6801N: 0; SDA6802N:0

SDI Video Output
Output: SDI: 8; ASI:4
Signal: SDI, ASI
Connector: BNC(IEC169-8)
Impedance: 75 ohm
Return Loss: >18 dB to 540 MHz
Signal Level: 800 mV +/- 10%
DC Offset: 0.0 V +/- 0.5V
Rise and Fall Time: 400 - 1500 pS (20% to 80% of amplitude)
Overshoot: < 10% of amplitude
Jitter: <0.2 UI (740 ps ) peak-to-peak

*Specifications are subject to change without notice.

---

Ordering Information  >>>

SDA6801N
SD-SDI distribution with equalization, 1x8

SDA6802N
SD-SDI distribution with equalization, 2 -1x4, or set 8 outputs via jumper
