Osee LCM215-HDR+ 21.5'' 1500nits Ultra-bright Field Monitor
Overview
|
|
Model: LCM215-HDR+ Display: 21.5inch, 1920*1080 Brightness: 1500nits Video Input: 2-SDI, 1-HDMI, 1-CVBS Video Output: 1-SDI Power: AC IN, DC IN, Battery |
Hardware Features
New Upgrade 1500nits Ultra-bright Panel
LCM215-HDR+ is the new upgrade version of LCM215-HDR monitor with a new upgrade panel, this panel not only has the ultra brightness of 1500 nits, but also has a well performed backlight uniformity. The super 1500nits screen is almost 3-4 times the brightness of other field monitors. This brightness will allow you to shoot outdoors in direct sunlight without any washing-out of the image on the screen, you may not even need sunhood while using it.
Various Connector Types
LCM215-HDR+ monitor has 2Ch 3G/HD/SD-SDI inputs, 1Ch VIDEO input, one HDMI input and 1Ch 3G/HD/SD-SDI output, with these connectors, it supports most of the audio and video formats. The supported signal formats are detailed in the specification section at the end of this page.
Various Application Scenarios
LCM215-HDR+ monitor's compatibility makes it suitable for all kinds of applications scenarios, you can sit it on table or use a C-stand adapter to hang it on the rod, it's also compatible with wireless accessories to sending out signals and images to video village.
Software Features
Built-in SDR/HDR 3DLUTs
LCM215-HDR+ provides 30 SDR 3DLUTs to convert log mode to REC 709 for most of the major camera brands, including FUJIFILM, GoPro, JVC, Panasonic, RED and Sony. What's more, LCM215-HDR+ also provides 14 HDR 3DLUTs to further convert log mode to REC 2020 for ARRI, Canon, Panasonic, RED and Sony, it will enhance color brightness and clarity and allows users to check how an HDR image will look like at the shooting location.
User 3DLUTs USB Upload
LCM215-HDR+ allows our user to load their self-making 3D-LUT files by USB flash memory. Once you synchronize LUTs in the monitor, you can easily change them on production. Up to 16 customized LUTs can be stored in the system.
Exposure Tools

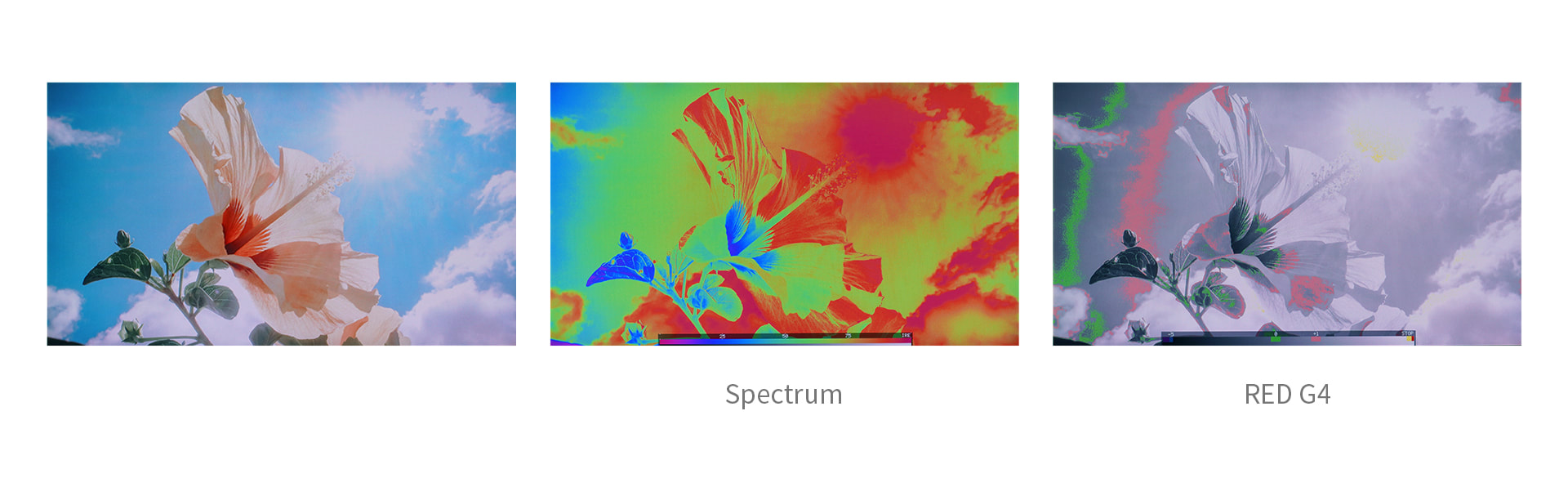

- Super False Color
Osee LCM215-HDR+ supports more powerful False Color function to help you get an accurate exposure for your specific camera easily. The exposure indications are calculated for different cameras, there are 17 different log curves including Spectrum/SONY Slog3/SONY Slog2/ARRI LogC/Canon Clog2/Canon Clog3/Panasonic Vlog/RED RedLogFilm/RED RL3G10/BMD/BMD 4K/ARRI Rec709/SONY LC709A/SONY LC709/Panasonic V709/RED G3 and RED G4 for you to choose.
- Zebra
The Zebra function is used to display images on the screen with a zebra pattern to adjust the camera exposure parameter. It will compare the signal luminance with the zebra level and fill the relevant image area, in which luminance is higher than the zebra level with a zebra pattern. LCM215-HDR+'s zebra level can be adjusted from 0 to 100.
Focus Tools
- Focus Assist
The Focus Assist function is used to display images on the screen with intensified edge to help camera focus operation. LCM215-HDR+'s Focus Assist has color mode and mono mode. In color mode, you can choose blue/green/red to color the intensified edge. In mono mode, the image is in black and white, that is removing all colors and only leaving the luminance data of the signal.
- Peak
Peak is also a focusing aid that places a highlight on in-focus edges within an image using an edge detect filter. Its sensitive level can be adjusted from 0-16.
Scope Tools
- Waveform
The Waveform is used to evaluate the brightness of your image, regardless of the color, LCM215-HDR+'s waveform has LUMA, RGB and Parade modes, and its size and location on screen can be adjusted.
- Vectorscope
The Vectorscope can show you how strong a particular color is by the length of the line out from the middle of the wheel. The longer the line, the stronger (or more saturated) the color. It's also a great tool for checking skin tone. The chart position can be changed among 8 locations.
- Histogram
Histogram assists in judging the distribution of luminance in the image, LCM215-HDR+'s Histogram has LUMA and RGB modes, you can choose different locations on the screen to place the chart.
Marker Tools
LCM215-HDR+’s Marker Tool has very rich functions, including Center Marker for enabling easier checking the center portion’s focus, Aspect Marker for displaying 2 lines to identify an area with a specified ratio, Area Marker for displaying a rectangle to identify the safety area with a specified percentage and CrossHatch for displaying multiple vertical and horizontal lines to help when the user check the composition of a picture. What’s more, there’re assist tools like Marker Fit, Mat Level and Marker Mat to help adjust the outlook of the markers.

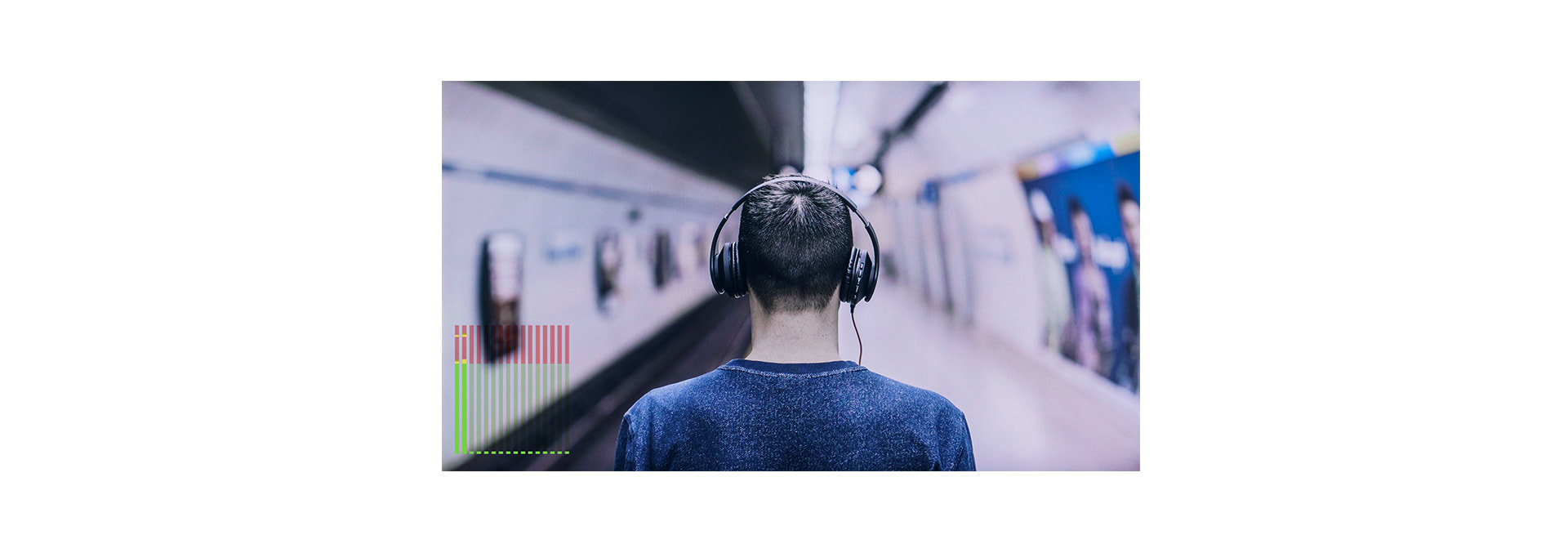

Audio Tools
Up to 16 Channels of SDI embedded or 2 channels of HDMI audio levels can be displayed with a choice of options including level reference settings and gain.

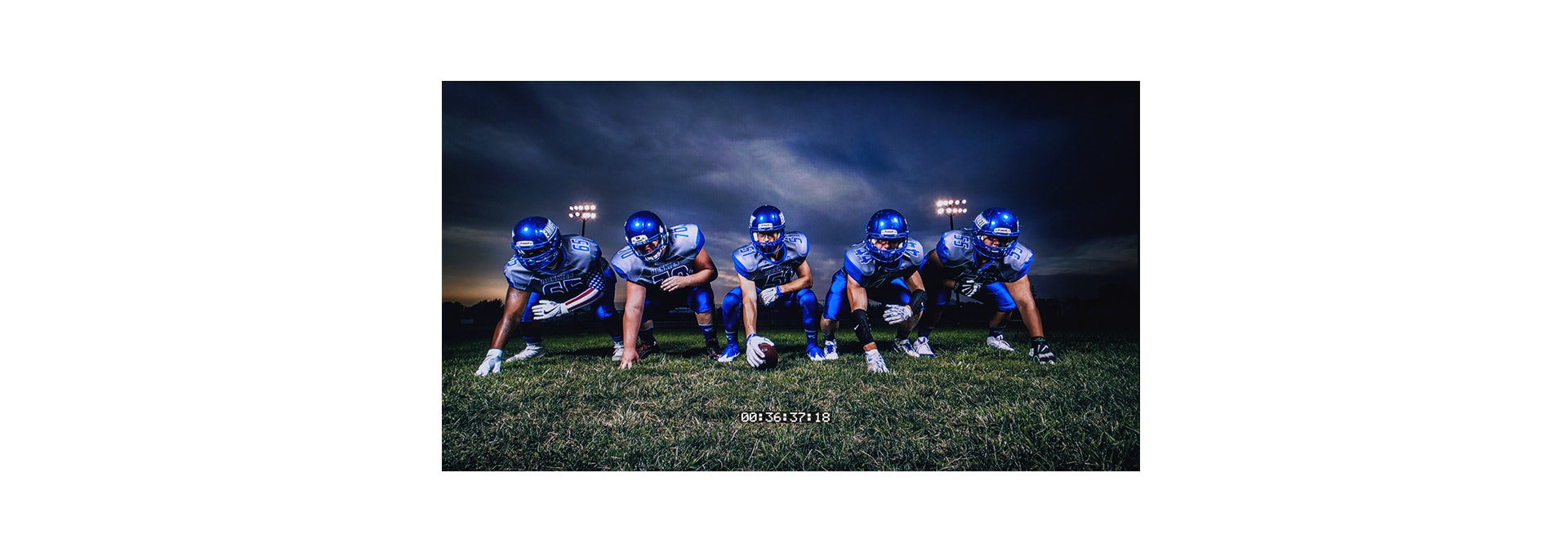

Time Code
Time Code is displayed as the format of “HH:MM:SS:FF” at the bottom center of the screen, and if there is no available time code, it will not appear.

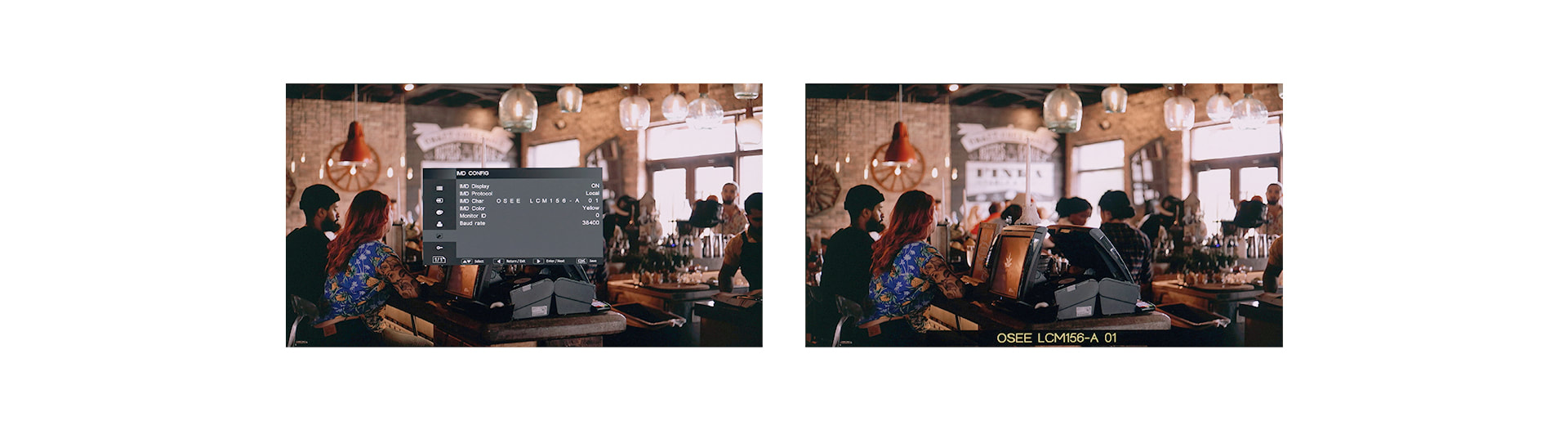

IMD Display
Once you set everything in the IMD Display menu and turn on IMD Display, the IMD character in the black bar will display on the bottom of the screen.

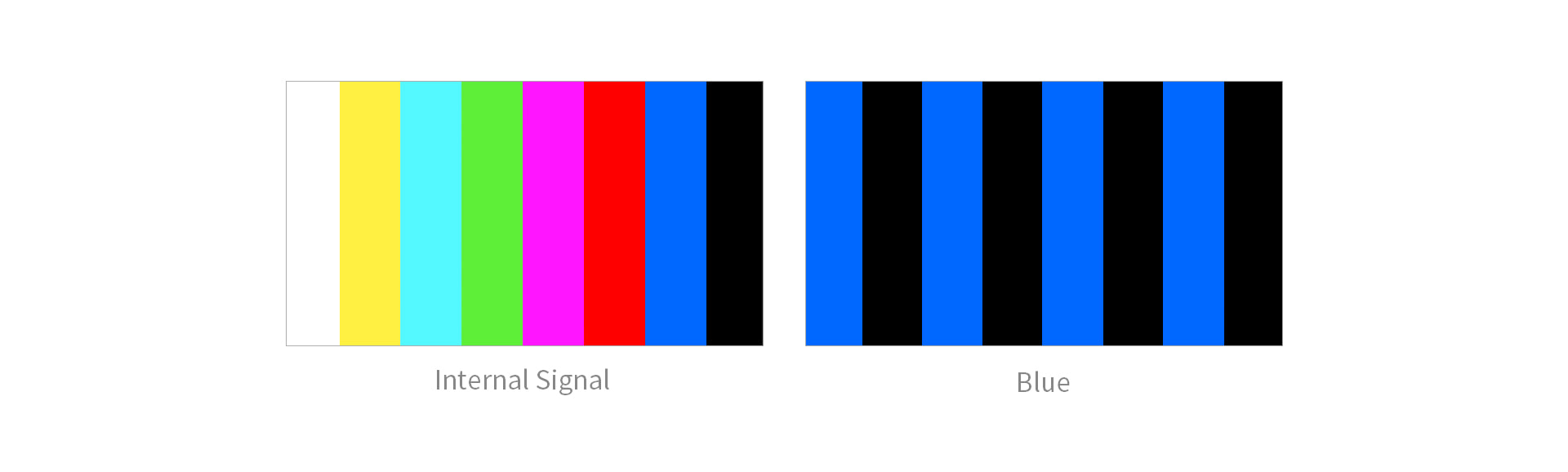

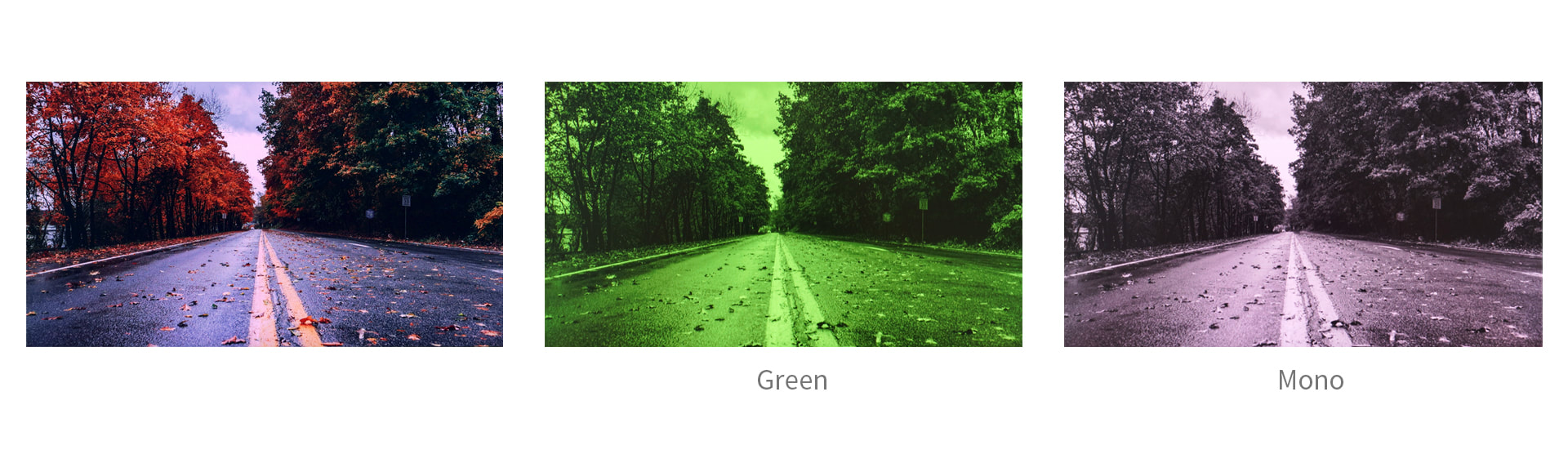

Blue Only
LCM215-HDR+ has 4 modes for Blue Only function, red, green blue and mono, once you choose a mode, the screen will only display that color channel. Combine this function and the Internal Signal, the user can do a simple color calibration on the monitor.
Quick User Interface
The screen menu items are controlled by 6 buttons at the bottom of the screen, and there're 4 more buttons for Function and User Preset. By assigning different tools to different users and buttons, you can pull the tools and switch them on set very quickly.
*User 2 is loaded with a LUT to stress the transition from User 1 to User 2.

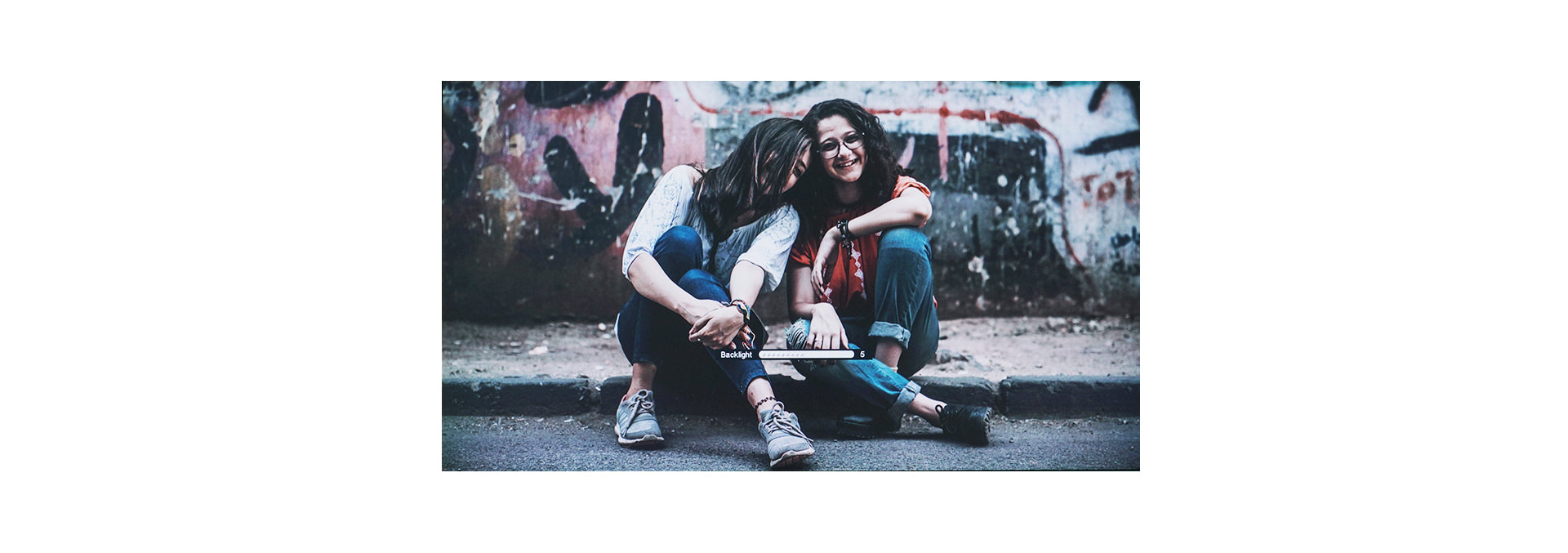

Fast Menu
The user can always adjust the value of volume, brightness, contrast, saturation, backlight and sharpness quickly in the fast menu.
Key Inhibit
The Key Inhabit is used to lock the settings so that they can’t be changed by an unauthorized user.
Scan
Scan function is used to control the size of the image, whether to show everything that’s on the camera if the aspect ratio is different from the monitor.
Osd Time
Set Osd Time as 10s, 30s or 60s, after you have loaded the menu, it will be closed automatically if you do no operation within the Osd Time.
Mute
Activate this function to adjust the volume to 0, press the function button again to release the volume to the last value.
Reviews
|
|
|
Monitor Kits
AB-Mount Kit
|
V-Mount Kit |
|
|
Specifications
Hardware
|
Display
Data I/O USB Slot: 3DLUT upload and Firmware Upgrade RS485 (cascade RJ45*2) Environmental
Power
|
Input
480i60 576i50 HD 720p24/23.98 p25 p30/29.97 p50 p60/59.94 1080sf24/23.98 sf25 sf29.97 sf30 1080i60/59.94 i50 i60/59.94 i50 i60/59.94 1080p24/23.98 p25 p30/29.97 3G 1080i50 i60/59.94 1080p24/23.98 p25 p30/29.97 p50 p60/59.94 3G-2K 1080sf24/23.98 sf25 sf29.97 sf30 1080p24/23.98 p25 p30/29.97 p50 p60/59.94
PAL
1080sf24/23.98 sf25 sf29.97 sf30 1080i50 i60/59.94 i50 i60/59.94 1080p24/23.98 p25 p30/29.97 Output
|
*Specifications are subject to change without notice!
Software
Color Management:
- Camera LUT (30 SDR&14 HDR LUTs, Detailed in User Manual)
- Load LUT File (USB, Up to 16 User LUTs can be Stored)
- Gamma (PQ, HLG)
- Color Temperature (D55, D61, D65, D93, DCI, User1, User2)
- Color Space (ITU709, EBU, SMPTE-C, Native, P3, ITU2020)
- Audio Source (Embedded/External/No Signal)
- Speak Out L/R (Select Channels for Left or Right Speaker, Embedded Signal Only)
- Meter Display
- Meter Select (CH1-2/G1/G2/G3/G4/G1+G2/G1+G3/G1+G4/G2+G3/G2+G4/G3+G4/G1-G4)
- Meter Position (Left/Right)
- Display Mode (Simple/with Channel Number&Frame)
- Meter Opacity (Value 0-100 Adjustable)
- Aspect (16:9/4:3/15:9/14:9/13:9/1.85:1/2.35:1/Variable(Value 1.00-3.00 Adjustable)/Off)
- Center Marker (On/Off)
- Area Marker (80%/85%/88%/90%/93%/95%)
- Crosshatch (On/Off)
- Marker Fit (On: Area Marker Based on the Current Input/Off: Area Marker Based on the Aspect Marker)
- Marker Level (Marker Line Luminance 50%/75%/100%)
- Marker Mat (Darkness of the Outside Area of Aspect Marker Off/Half/Black)
- Waveform (Mode:LUMA/RGB/Parade; Size&Location:Small&Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down, Middle&Right Down/Center Down/Left Down, Large&Center Down; Opacity: 25%/50%/75%/100%)
- Vectorscope (Location:Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%)
- Histogram (Mode: LUMA/RGB; Location: Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%)
- False Color (Spectrum/SONY Slog3/SONY Slog2/ARRI LogC/Canon Clog2/Canon Clog3/Panasonic Vlog/RED RedLogFilm/RED RL3G10/BMD/BMD 4K/ARRI Rec709/SONY LC709A/SONY LC709/Panasonic V709/RED G3 and RED G4)
- Zebra (Level 1-100 Adjustable)
- Focus Assist (Red/Green/Blue/Mono; Sensitivity Value 0-100 Adjustable)
- Peaking ( Level 1-16 adjustable)
- Anamorphic (2.38/Off)
- Blue Only (Blue/Green/Red)
- IMD Display (Protocol: TSL3.1/TSL4.0/Local; Color:Red/Green/Yellow; ID Number:0-255; Baud Rate: 2400/4800/9600/19200/38400/57600/115200)
- Key Inhibit (On/Off)
- Mono (On/Off)
- Mute (On/Off)
- Osd Time (10/30/60s)
- Scan (On/Off)
What's in the box
Standard Package Includes:
- LCM215-HDR+ Monitor
- Sunhood
- V/AB-mount Battery Plate
- C-stand Adapter
- Custom Foam Mold
- Desktop Stand Feet
- Power Cable
Warranty
Warranty: 1 Year
