Osee G7  7'' 3000nits SDI/HDMI On-camera Monitor​

>>>Download User Manual

>>>Download Brochure

>>>Shop Now

---

Overview

Model: G7
Display: 7-inch, 1920X1200
Brightness: 3000nits
Video Input: 1-SDI, 1-HDMI
Video Output: 1-SDI, 1-HDMI
Power: DC IN, Battery (SONY NP-F)

---

​

---

​Image Tools​

CrossHatch

​​From 2x2 to 9x9, G7's crosshactch can help the cinematographer compose an ideal framing in the quickest way possible.

Super False Color

Osee G7 monitor supports the most powerful Super False Color mode, including under-exposure / over-exposure / 18 degree grey / skin tone indications, to help you get a correct exposure easily. The exposure indications are calculated for different cameras, there are 16 different log curves including ​SONY S-Log2, SONY S-Log3, Panasonic V709, ARRI REC709,  RED LOGFILM, RED RG4, etc for you to choose.

Level-adjustable Zebra

 Zebra helps you expose your image properly by displaying a stripe pattern over a specific brightness (IRE, value) range on your image.  This is useful for essentially setting exposure ‘boundaries’ typically for highlights, its level can be adjusted from 1 to 100.

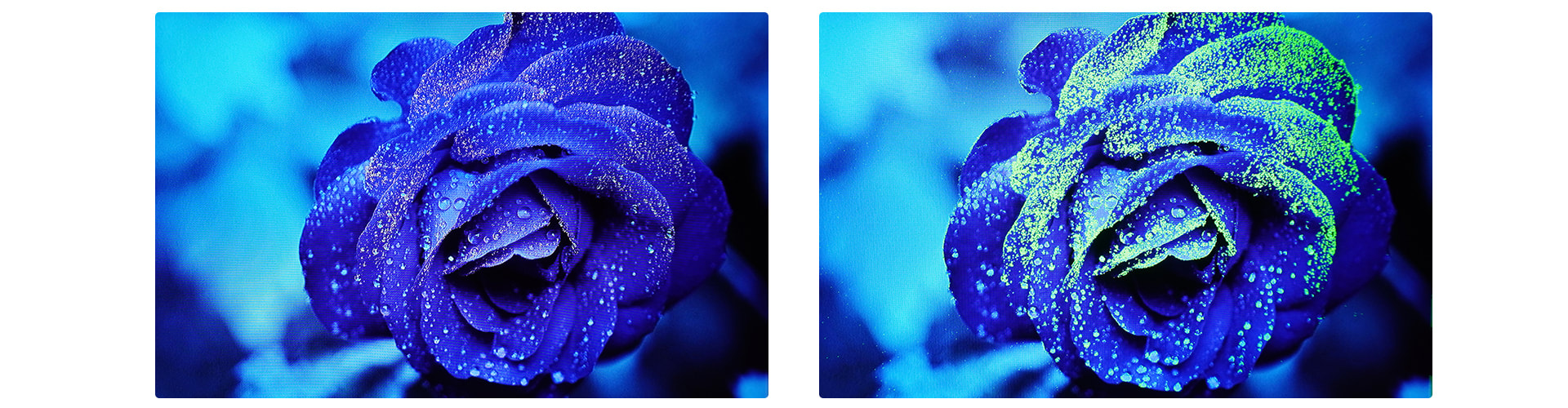

​RGB 3-color Focus Assist

Outlining in White, Red, Green or Blue at the edge of shot objects can efficiently help you confirm if your focus is right on the target,  you can choose whether to turn on the B&W Background function, also the sensitivity is adjustable from 1-10.

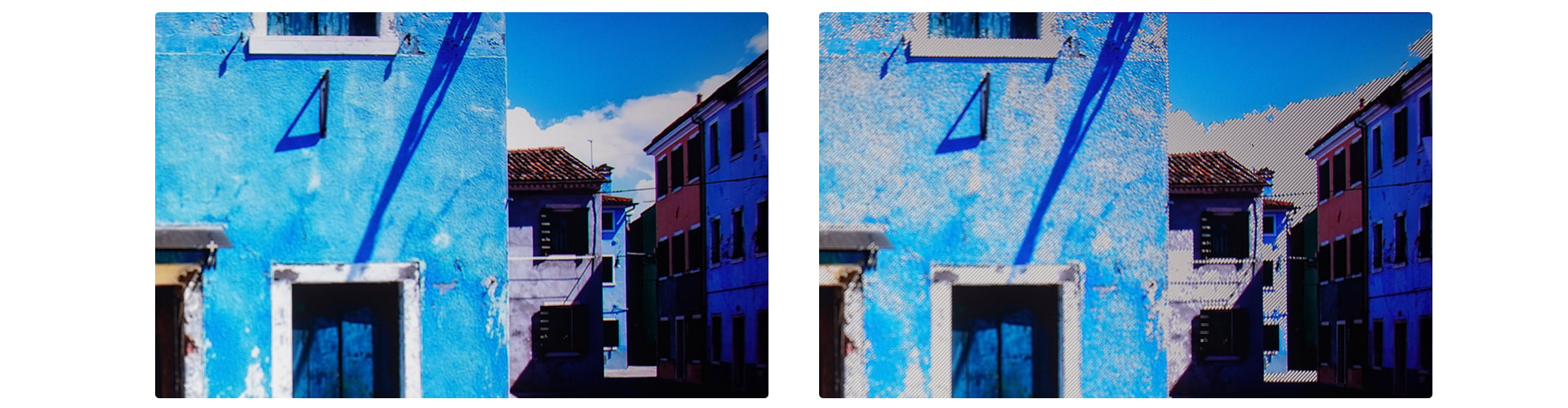

​Built-in 3DLUT

Osee G7 monitor provides 33 kinds of De-log 3DLUTs, including S-log 2/3, V-log, C-log 1/2/3, Log-C, J-log1, Redlog,BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC 709 for all major cameras. To further enhance color brightness and clarity, Osee G7 supports High Dynamic Range (HDR) to help make images more detailed and real.

User 3DLUT Upload

Cinematographers can also upload user creative 3DLUT cube or calibration 3DLUT cube to G7 monitor by SD card. G7 supports 17^3, 33^3 and 65^3 cubes. Max 16 user 3DLUTs can be restored.

​Full Professional Video Analysis

G7 has full professional video analysis tools including waveform, vector scope, histogram and audio level meter to help our user to analyze their video, and with image re-size tool together, you can put these analysis charts and the image together for a clear comparison to see which parts or parameters need to be adjusted.

---

What's in the box
​

The Standard Package Includes:
G7 Monitor
Screw Articulating Arm Trestle
D-tap to Lockable Pole DC Cable
AC-DC Power Adaptor
V mount Battery Plate
Sunhood
Carrying Case

---

Reviews​
​

'I have used the monitor 3 times now, the picture quality is awesome, the brightness is awesome. I’ve used false peaking and that has been great, I would say better than other monitors I’ve used in the past. Well done the service you guys have provided as well as product. I love that it comes with a hard case with a frame to mount the monitor as well as cables d-tap, v-lock, all these accessories make this product great value.'
———--Shane Booth

​I have all 3. I recommended to a friend in Adelaide who bought one as well. I’ve been using it outside under sunlight and love it!! Very bright!!
​———— Matt Kearney   ​

---

​Specifications
​

Hardware
​

 Monitor Body​

Weight(Bare Monitor)          450g
Dimensions(W x H X D)       192.0mm×116.3mm×24.7mm
Mounting Points                    1/4’’ Thread Points (1*Top&1*Bottom)
Fan                                            Fan speed adjustable

Display
​
​Panel Size                                7inch
Resolution                               1920X1080
Aspect Ratio                           16:10
Color Depth                           1.06G
Brightness                               3000nits
Contrast                                   1200:1
Anamorphic De-squeeze     1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG
DSLR                                         ScaleCanon 5D Mark 2, Canon 7D
Zoom                                        2x, 4x Zoom and Pan
Screen Rotate                          Auto/0°/180°​

​​Power
​
​Input Voltage                          DC IN 11-17V, Battery 6-8.4V
Battery Plate                            SONY NP-F
Power Consumption             16.2W

Data I/O

​SD Card Slot                            3DLUT upload and Firmware Upgrade
Input/Output Signal               HDMI(1.4)
                                                   3840x2160p(30/29.97/25/24/23.98)
                                                   1080p(60/59.94/50/30/29.97/25/24/23.98)
                                                   1080i(60/59.94/50)
                                                   720p(60/59.94/50)
                                                   480i/576i/480p/576p
​
                                                   SDI
                                                   2KP60/59.94/50
                                                   1080P60/59.94/50/30/29.97/25/24/23.98
                                                   1080i60/59.94/50
                                                   1080SF30/29.97/25/24/23.98
                                                   1035I60/59.94
Audio                                        3.5mm Headphone Jack​

Software

Control​​

Volume Level                          0-31 Adjustable
Backlight Level                       0-10 Adjustable
Display Rotate                        Screen Rotate Auto/0/180& Image Rotate 0/180
Anamorphic                           1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off
DSLR Scale                              None/CANON 5D MARK II/CANON 7D​

​Frame Tools
​
​​Aspect                                     4:3/1.85:1/2.39:1/16:9/Custom Ratio, Matte/Line Mode
Safe                                          16:9 / 14:9 / 4:3, Action&Title Selectable
Center                                      On/Off
Cross Hatch                             2x2, 3x3 ... 9x9

​Exposure Tools
​
​False Color                              17 Curves
Zebra Level                             1-100 Adjustable
Waveform                                LUMA/RGB/Parade Mode, Size&Location&Opacity Adjustable
Vector Scope                          Location&Opacity Adjustable

​​Fous Tools

Focus Assist                             White/Red/Green/Blue Mode, B&W Background, Sensitivity Level 1-10 Adjustable
Peaking Intensity                     Level 0-10 Adjustable​

Look Tools

Look                                          Built-in 33 De-log 3D LUTs/Support 16 User 3DLUTs Import by SD Card
Audio Meter                            Location&Opacity Adjustable

Scale Tool
​
Image Scale                             Location Adjustable​
