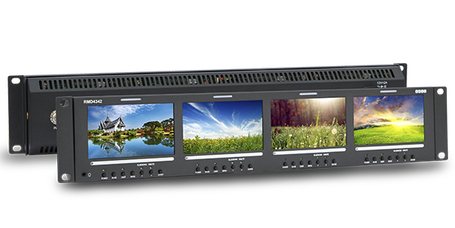

RMS(D)4342N

---

The RMS(D)4342N is a 4.3", 4-screen, 2RU rack-mountable LCD monitor with 800×480 resolution and 3G/HD/SD-SDI support. The features of accurate color calibration, embedded audio level meter display and full feature waveform and vector making RMS(D)-4342N the best choice for flight pack, OB Van and EFP application.

>>> Download Brochure

>>> Download User Manual​

---

Features  >>>

• Multiple format signal input
• Various Makers (Area Marker, Safe Marker and Center Marker)
• Color temperature adjustment（D93, D65, D56, D50, D32）
• Various color gamut modes
• The waveform/vector can be displayed in full screen
• AFD Function
• Time Code Display（VITC, LTC,D-VITC）
• Internal Ethernet web server (also used for firmware update)

Front Panel

Rear Panel

< Picture Click to enlarge >

---

Specifications  >>>

Number of Screen:  4
Display Area:  4.3" diagonal
Viewing Angle:  170°H×170°V
Color Depth:  16.2M
Resolution:  800H×480V
Contrast:  400:1
Brightness:  300cd/m²
Temperature:  0℃ to 35℃
Dimension:  19.01"W×3.46"H×1.34"D (483mm×88mm×34mm)
Power Consumption:  12VDC/10watts.-(3.8Amps max –CE&UL complied supply included)
Signal Format:   480i59.94, 576i50;
                            720P24/23.98/25/30/29.97/50/60/59.94,1080SF24/23.98,1035i60/59.94, 1080i50/60/59.94, 1080P24/23.98/
                            25/30/29.97/50/60/59.94 PAL, NTSC
Input (Single Screen):  3G/HD/SD-SDI/analog composite (BNC×1)        --RMS4342N
                                        3G/HD/SD-SDI/analog composite (BNC×2)         --RMD4342N
Output (Single Screen):  3G/HD/SD-SDI/analog composite (BNC×1)     --RMS4342N
                                                                         /                                                     --RMD4342N
Accessories:  AC power cord / DC adapter

---

​Ordering Information ​>>>

RMS/D4342N-3G      LCD Monitor supports 3G/HD/SD-SDI
RMS/D4342N-HD     LCD Monitor supports HD/SD-SDI
