ACOHD6800

Download Brochure

---

4×1 Intelligent Switcher

ACOHD6800 is an intelligent 4×1 Switcher, which detects the input signals in real time. It supports automatic/manual switch to the backup signal to guarantee the ceaseless output in case of power failure, and when the signal returns to normal, it can switch back to the original signal also.

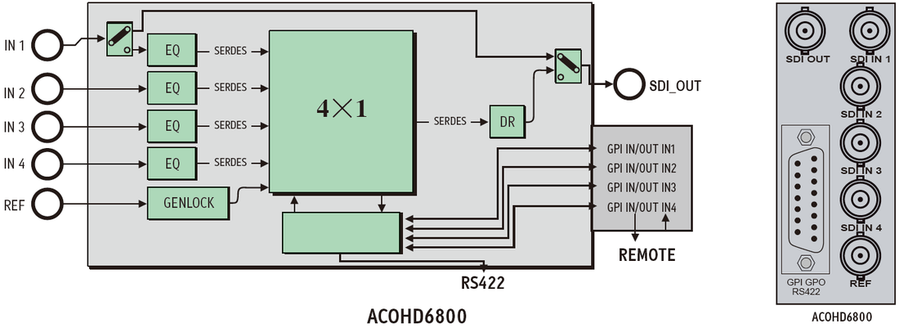

ACOHD6800 is widely used in studio, playout and master control. Based on modular design, it is applicable to our 6800 platform. It offers 4ch 3G/HD/SD-SDI inputs, 1ch 3G/HD/SD-SDI output, and IN1 signal BY-PASS output.

---

Features  >>>

• Automatic/manual switching of HD/SD-SDI signal

• Auto-sensing of external reference synchronization signal
• Detection of input signal failure​
• Power-off memory function, the setting will be restored when power-on

•  IN1 signal BY-PASS output when power off
• The automatic mode performs based on signal analysis of video loss, EDH, freeze frame, black burst and audio group supervision.
• RS422 control
• Clean switching

---

Specifications  >>>

Video Input​
Input Channel: 4ch SDI input(primary signal, secondary signal, third signal), 1ch reference input (such as color strip, test chart)
Standard:
SMPTE259m-C (270Mb/s, 525/625) SD-SDI
SMPTE424m (2.970, 2.970/1.001Gb/s) 3G-SDI
Connector: BNC (IEC 169-8)
Impedance: 75Ω
Signal Amplitude: 800mV±10%
Return Loss: SD-SDI: >18dB,5MHz to 270MHz
                      HD-SDI: >15dB,270MHz to 1.5GHz
Cable Length: SD-SDI:0~300mBelden1694A
HD-SDI: 0~100mBelden1694A
Supported Format: SD-SDI: 525i60, 625i50
HD-SDI: 1080i50/59.94​

Video Output
Number of output: 1
Video Standard:
SMPTE259m-C (270Mb/s, 525/625) SD-SDI
SMPTE424m (2.970, 2.970/1.001Gb/s) 3G-SDI
Connector: BNC(IEC169-8)
Impedance: 75Ω
Return Loss: SD-SDI: >18dB,5MHz to 270MHz
                      HD-SDI: >15dB,270MHz to 1.5Hz
Output Level: 800Mv±10%
DC Offset: 800Mv±10%
Rise and Fall Time: SD-SDI: <700ps
HD-SDI: <270ps
Overshoot: <10% of amplitude
Jitter: <0.2 UI pk-pk

Reference Signal
Signal Format: analog composite synchronous signal and tri level sync signal
Connector: BNC
Impedance: 75Ω
Input Level: NTSC/PAL: 0.45V, -6dB~+6dB
tri level sync signal: ±300mV, -6dB~+6dB
Return Loss: >35dB up to 5.75MHz

Operating Environment
Work Temperature: 0°C~+50°C
Work Humidity: 10%~90%​

*Specifications are subject to change without notice

---

Ordering Information>>>

ACOHD6800
4×1 Intelligence Switcher
