ADC6820N2/ADC6820N4

Download Brochure

Download User Manual

---

Audio Analog to Balanced/Unbalanced AES Converter

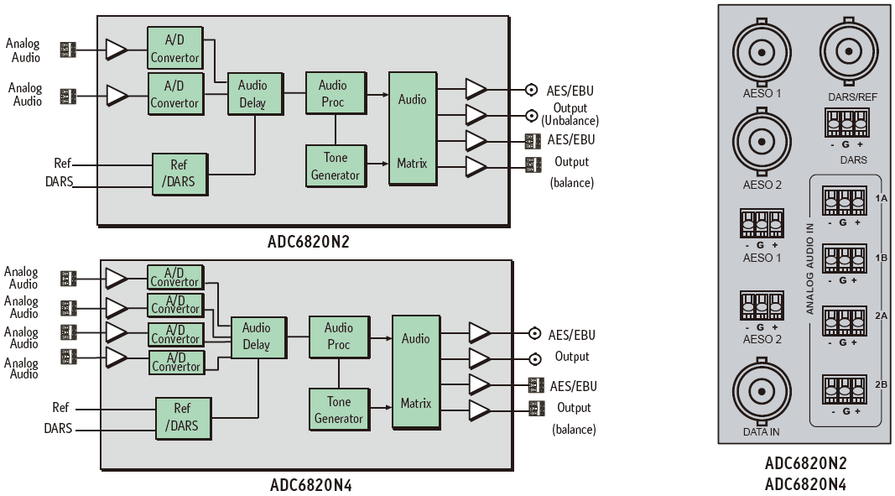

The ADC6820N2/ADC6820N4 is an audio A to D converter with audio delay. Both modules can provide two/four balanced audio inputs, two pairs of unbalanced and two pairs of balanced AES audio outputs. They can also provide one balanced or unbalanced DARS input, one Genlock input.
The user can select either DARS or Genlock as a synchronized signal. Both modules can generate fixed-rate Tone signal and provide flexibility in audio sampling and delay setting.

---

Features  >>>

• One pair/two pairs of balanced analog audio inputs

• Two pairs of unbalanced AES and two pairs of balanced AES outputs

• Either DARS or Genlock can be selected as synchronized signal

• 16-bit, 20-bit, 24-bit sampling setting

• Generating two fixed-rate audio signal

• -96 ~ +12dB audio gain range adjustment

• Maximum 1980ms @ 32KHz manual delay

• Local or Remote control and monitoring

---

Specifications  >>>

Balanced Analog Video Input
Number of Inputs: ADC6820N: 1 ADC6820N4: 2
Connector: 3 pin connector
Input Coupling: AC coupled
Impedance: >50KΩ
Maximum Input Level: +16dB to +28dB in 2 dB steps

Digital Audio Output
Number of Outputs: 2 AES 75 ohm BNC and 2 AES 110 ohm balanced
Standard: AES 3: 1992, AES3id: 1995 and SMPTE 276M
Impedance: 75 ohm /110 ohm
Channel Status: Professional

110 Ohm Output
Impedance: 110 ohm+/-20%
Level: 2 V to 7 V peak-to-peak
Common Mode: >30 dB below output signal
Rise and Fall Time: 5 to 30 ns
Jitter: 0.02 UI

75 Ohm Output
Return Loss: >30 dB up to 6 MHz
Output Level: 1.0 V +/- 0.1 V peak-to-peak
DC Offset: <10 mV
Rise and Fall Time: 30 to 44 ns
Jitter: 0.02 UI​

External Reference Input
Connector Type: BNC (unbalanced)
                            3 pin connector (balanced)
Impedance: 75 ohm (unbalanced)
                    110 ohm (balanced)
Return loss: >30 dB up to 6 MHz (unbalanced)
AES Reference Sampling Rate: 32 kHz, 48 kHz, 96 kHz
Video Reference: 525,625 Black Burst

Performance
​Quantization: 16 bits, 20 bits, 24 bits
Sampling Rate: 32 kHz, 48 kHz, 96kHz
Frequency Response: <+/-0.05 dB @-10 dBFS, 20Hz to 20 kHz
Linearity: <+/-0.3 dB up to -100 dBFS
Signal to Noise @ O dBFS: 100dB (no filter)
                                            103 dB (A-weight)
THD+N: <0.003% @ (20 Hz to 20 kHz), -1 dBFS = +23 dBu
IMD: >90 dB (CCIF two tone test @ 0 dBFS = +18 dBu,
         +24 dBu, +28 dBu, High-Z load
Crosstalk: >90 dB, 20 Hz to 20 kHz

Power Consumption
Power: 2.3W
Positive Rail: 350 mA
Negative Rail: 6 mA

*Specifications are subject to change without notice

---

Ordering Information>>>

ADC6820N2
2 Channels Audio Analog to Balanced/unbalanced AES Converter

ADC6820N4
4 Channels Audio Analog to Balanced/unbalanced AES Converter

ADC6820NS
2 Channels Audio Analog to Balanced/unbalanced AES Converter with audio tracking

ADC6820NS4
4 Channels Audio Analog to Balanced/unbalanced AES Converter with audio tracking
