SD-SDI to Analog YUV Converter

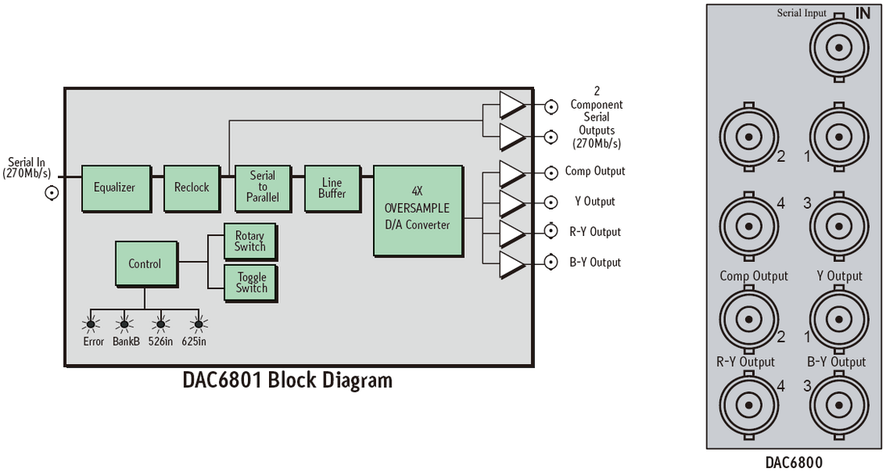

The DAC6800 is a broadcast quality encoder; the broadcast SD-SDI signal can be converted to an analog component YUV and a composite CVBS signal. The DAC6800 supports 2ch SDI signal output simultaneously, 1ch component YUV signal output and 1ch analog CVBS signal output.

---

Features  >>>

• Compact design
• Applicable to multi standard
• Advanced encoder technology
• Advanced interpolation technology
• Full-featured processing amplifier

• Vertical blanking

• SETUP control

• Synchronous sequential circuits

• Internal test signal

• Optional mode of frame synchronization or delay

• Automatic input equalization

---

Specifications  >>>

erial Video Input
Standard: SMPTE 259M-C; 270Mb/s, 525/625 component
Connector: BNC per IEC169-8 standard
Impedance: 75 ohm
Return Loss: >18dB to clock frequency
Singal Level: 800mV +/-10%
CMR Ratio: 30Vp-p, to 60 Hz
Equalization: Automatic to 30dB, SMPTE 259M-C

Analog Video Output
Number of Outputs: 1
Standard:
SMPTE/EBU component, Betacam component, 525/625
Level:
​​0.7Vp-p colour difference signal, 1Vp-p luminance signal
Connector: BNC per IEC169-8 standard
Impedance: 75 ohm
Return Loss: >40dB to 5.75MHz

Serial Video Output
Number of Outputs: 2
Standard: SMPTE 259M-C; 270Mb/s, 525/625 component
Connector: BNC per IEC169-8 standard
Impedance: 75 ohm
Return Loss: >18dB to clock frequency
Signal Level: 800mV +/-10%
DC Offset: 0V+/-0.5V
Rise and Fall Time: 0.4 to 0.7ns(20% to 80% of amplitude)
Overshoot: <10% of amplitude(all outputs terminated)
Jitter: <0.3ns

Power Dissipation
Positive Rail: 6.5W
Negative Rail: 0.3W
Total: 6.8W

*Specifications are subject to change without notice

---

Ordering Information>>>

DAC6800
SDI to Analog YUV Converter
