DEC6800N/DES6800N

Download Brochure

Download User Manual

---

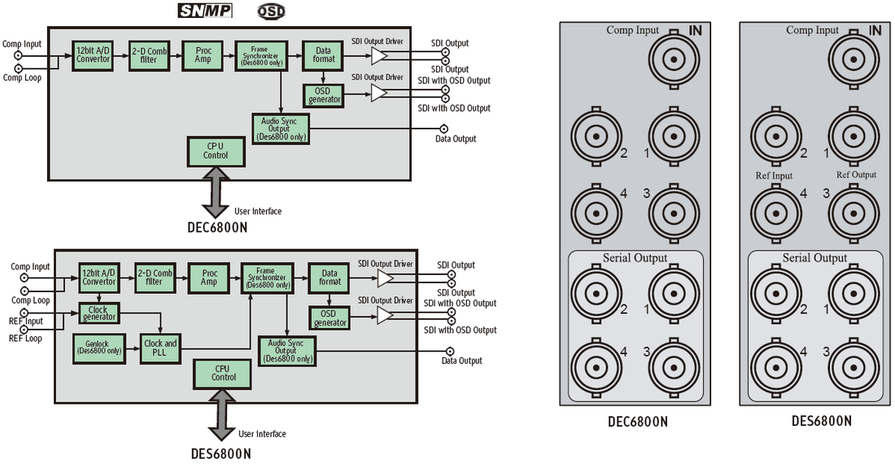

Analog Composite to Serial Digital Converter

The DEC6800N is a compact, high precision 12-bit decoder that converts NTSC, PAL and SECAM analog composite signals into a broadcast quality component 4:2:2 signal from the noisiest inputs，such as satellite and microwave links.
The DES6800N has all functions mentioned above, in addition it is with frame synchronization.

---

Features  >>>

• 4X Over sampling analog to digital conversion with 12-bit resolution
• Automatic standard switching (based on input signal)
• Automatic gain and chroma controls (AGC and ACC)
• Fully functional processing amplifier
• Line-by-line VBI processing

• Test signal generator (color bars and black signal outputs)

• EDH insertion for error tracking

• An OSD (On-Screen Display) can be keyed in and out of video output

• Analog color black NTSC/PAL reference inputs

• Built-in frame synchronizer (applicable to DES6800N)

---

Specifications  >>>

Analog Video Input
Standards: NTSC, PAL (Manual standard mode)
NTSC, NTSC-J, NTSC-4.43, PAL, PAL-M,
SECAM (Auto standard mode)
Level: 1V p-p ±3 dB
Impedance: 75 ohm
Return Loss: >40 dB to 5.8 MHz
Video Level Adjust Range: +6 dB/-1 dB
Maximum Input Cable: >300m

Digital Video Processing
Input: 12-bit 4X quantization
Decoding Algorithm: 5-line adaptive comb
Frequency Response: +/-0.1 dB to 6MHz
Luma Signal to Noise Ratio: >60 dB 10 kHz to 6 MHz

Storage
​Number of Fields: 2 (1 frame)
Data Path: 10 bits​

SDI Outputs
Quantity: 4
Standard: SMPTE 259M-C; 270 Mb/s
Connector: BNC (IEC 169-8)
Impedance: 75 ohm
Return Loss: >18 dB to 270 MHz
Signal Level: 800mV ±10%
DC Level: 0.0 V ±0.5 V
Overshoot: <10% of amplitude (all outputs terminated)
Jitter: <500ps

Phasing
​Horizontal phase adjustment range: 1 line, with resolution of 37 ns
Vertical phase adjustment range: 1 frame, with resolution of 1 line

Power Consumption
Power: 3.0W
Positive Rail: 420mA
Negative Rail: 15mA

*Specifications are subject to change without notice

---

Ordering Information>>>

DEC6800
Analog composite to serial digital converter

DES6800
Analog composite to serial digital converter with frame synchronizer
