ENC6800/ENS6800

Download Brochure

---

SD-SDI to NTSC/PAL Encoder

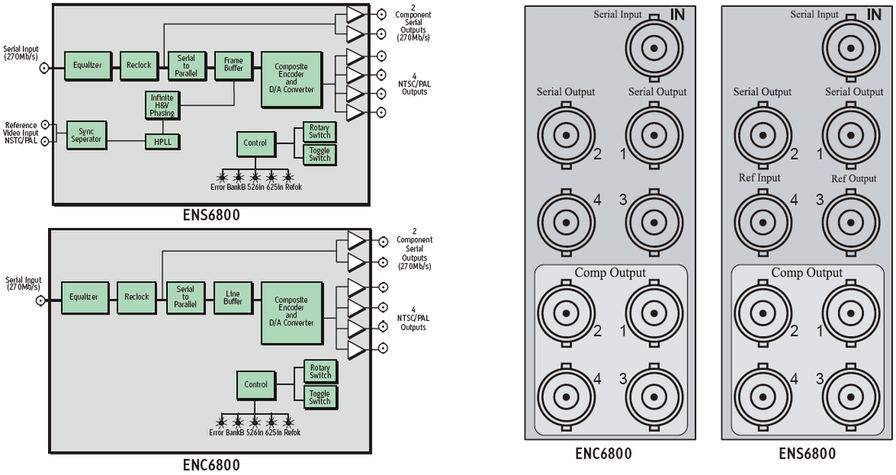

ENC6800 is a broadcast encoder, which converts a NTSC/PAL 4:2:2 SD-SDI signal to an analog composite video signal. It features 4 analog compos- ite video outputs, a 10-bit precision encoder, an auto-sensing of 525 line NTSC or 625 line PAL together with the latest encoding technology (supports NTSC or PAL) and the 4X oversampling and jitter removal technology to guarantee the quality of the output signal.
Other than above functions, ENS6800 has a built-in synchronizer, which can be installed in to the main board directly.

---

Features  >>>

• Automatic or manual switch for NTSC/PAL
• 4X oversampling
• 10-bit internal processing

• Four channels of analog composite video outputs


• External NSTC or PAL BB reference input
• Manifold Processing amplifier control
• Built-in 4:2:2 frame synchronizer (only applicable to ENS6800)

---

Specifications  >>>

Serial Digital Video Input
Standards: SMPTE 259M-C; 270Mb/s, 525/625 component
Connector: BNC(IEC169-8)
Impedance: 75 ohm
Return Loss: >18dB to 270M
Singal Level: 800mV +/-10%
CMR Ratio: 30Vp-p,to 60 Hz
Equalization: Automatic to 30dB,SMPTE 259M-C

Serial Digital Video Output
Number of Inputs: 2
Standards: SMPTE 259M-C;270Mb/s,525/625 component
Connector: BNC per IEC169-8 standard
Impedance: 75 ohm
Return Loss: >18dB to 270M
Signal Level: 800mV +/-10%
DC Offset: 0V+/-0.5V
Rise and Fall Time: 0.4 to 0.7ns(20% to 80% of amplitude)
Overshoot: <10% of amplitude (all output terminated)
Jitter: <0.3ns

Analog Video Output
Number of Outputs: 4
Standards: NTSC, PAL
Level: 1Vp-p
Impedance: 75 ohm
Connector: BNC( IEC169-8)
Return Loss: >40dB to 5.75MHz
Output Filter: Per CCIR601 standard
Differential Gain: 0.7%
Differential Phase: 0.50
Group Delay: <10ns to 5.75MHz
S/N Ratio: >60dB to 5MHz
Quantization: 10 bits

Reference Input
​Signal Type: NSTC/PAL analog composite
Connector: BNC( IEC169-8 )
Impedance: High loop through

Power Consumption
Power: 6.8W
Positive Rail: 1000mA
Negative Rail: 40mA

*Specifications are subject to change without notice

---

Ordering Information>>>

ENC6800
SDI to NTSC/PAL Encoder

ENS6800
SDI to NTSC/PAL Encoder with frame synchronizer
