HFO6800-EO/OE-LC

Download Brochure

---

HD-SDI Optical Transmitter/Receiver---- Unidirectional

The HFO6800-EO/OE-LC is an advanced reliable high-speed optical fiber transmission module, which features full digital, real-time, delay-less and highspeed transmission. The transmission distance can reach about 100km, and the quality meets broadcast standards.
This module supports HD/SD standards of SMPTE259M, SMPTE295M, SMPTE305 and SMPTE310, and it is mainly applied to internal playout of TV stations, studios, programming, CATV front-end and other distance transmissions.

---

Features  >>>

• Full digital, uncompressed, broadcast transmission quality

• Compatible with SDI and ASI signal

• Auto sensing of HD-SDI, SD-SDI and ASI signal​

• Supports SMPTE292M, SMPTE295M, SMPTE305 and SMPTE310
• High-speed transmission rates: 19.4M-1.5Gbps
• Single mode fiber transmission, and the transmission distance can reach about 100km

---

Specifications  >>>

Video Characteristics
Channel No.: 1Ch
Signal Format:
SMPTE292, SMPTE259M, SMPTE305 and SMPTE310
Data Rate: 19.4M—1.5Gbps
Resistance: 75Ω
Return Loss: >15dB@1GHz
SDI Signal Level: 800mV

Optical Characteristics
Wavelength (Input/output): 850/1310/1550 nm
Transmit Power: -3dBm
Broadband Spectral: 3nm
Received Power (Min): -30dBm
Received Power (Max): -23dBm
Baud Rate (Positive): 1.5Gpbs

Interface
Video: BNC
Optical: FC/ST/SC

Environment Characteristics
Working Temperature: -20℃to +70℃
Storage Temperature: -30℃to +80℃
Weight: about 1.5Kg
Humidity: 0% to 90%

Electromagnetic Compatibility
Radiation: EN50081-1, EN55022-B, CE, FCC
Magnetic Susceptibility: EN50130-4, EN50082-1

Electrical Characteristics
Power Supply: 95-240VAC@0.6A

*Specifications are subject to change without notice

---

Ordering Information>>>

HFO6800-EO/OE-LC（40km）

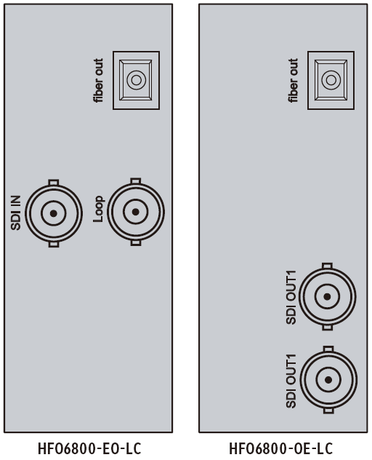

HD-SDI Optical Transmitter/Receiver---- Unidirectional
