HUC6830N/HDC6830N/HCC6830N

Download Brochure

Download User Manual 1

Download User Manual ​​2

---

3G/HD/SD Up, Down and Cross Converter with Audio Processor

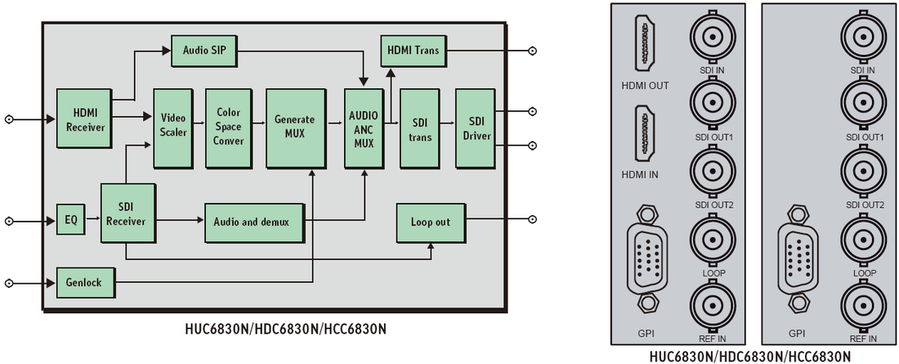

The HUC6830N/HDC6830N/HCC6830N delivers all the essential video and audio signal processing functions on a single module. It supports up/down/cross conversion with simultaneous 3G/HD/SD outputs and the AFD function is available to ensure the upconverted or downconverted video delivered in the correct aspect ratio when aired. Based on multiple sophisticated processing technologies, processing is applied within the frame and between frames so you can get better de-interlacing, inter-frame interpolation, detail enhancement and noise reduction.

---

Features  >>>

• Up/ down/cross converter with frame sync
• Offers a multi-rate 3G/HD/SD input and simultaneous
  3G/HD and SD outputs
• Flexible HD/SD URS reference input
• Advanced video de-interlacing for best image quality
• Automatic ARC using AFD(SMPTE-2016), VIDEO INDEX(PR-186) and WSS

• Process and convert the auxiliary data like CC(608/708) and TC（LTC, VITC）
• Built-in black field testing signal
• Built-in color corrector
• Video loss, freeze-frame and black field detection
• Supports SNMP and network control

---

Specifications  >>>

SDI Video Input​
Standards:
​SMPTE259m-C(270Mb/s,525/625 Component) SD-SDI
SMPTE292m(1.485,1.485/1.001Gb/s) HD-SDI
SMPTE424m(2.970,2.970/1.001Gb/s) 3G-SDI
Connector: BNC(IEC169-8)
Impedance: 75Ω
Return Loss: >15dB,5MHz to 270MHz SD-SDI
                     >15dB,5MHz to 1485Hz HD-SDI
                     >15dB up to 3GHz 3G-SDI
Equalization: SD-SDI: 0-300m Belden 1694A
                      HD-SDI: 0-100m Belden 1694A
Supported Format:
480i, 576i, 720p50, 720p59.94, 1080i50, 1080i59.94, 1080p23.98, 1080pSF23.98, 1080p25, 1080p29.97, 1080p50, 1080p59.94
​
Signal Input​ Reference
Format: Black burst sync and tri-level sync
Connector: BNC
Impedance: 75Ω
Input Level: NTSC/PAL：0.45V，-6dB-+6dB
Tri-level sync: ±300mV, -6dB-+6dB
Return Loss: >35dB up to 5.75MHz​

Video Output
Standards:
​SMPTE259m-C(270Mb/s,525/625 Component) SD-SDI
SMPTE292m(1.485,1.485/1.001Gb/s) HD-SDI
SMPTE424m(2.970,2.970/1.001Gb/s) 3G-SDI
Connector: BNC(IEC169-8)
Impedance: 75Ω
Return Loss: >15dB,5MHz to 270MHz SD-SDI
                     >15dB,5MHz to 1485Hz HD-SDI
                     >15dB up to 3GHz 3G-SDI
Signal Level: 800Mv±10%
DC Offset: 0±0.5V
Rise and Fall Time: 400-1500 ps SD-SDI
                               <270 ps HD-SDI
                               <135 ps 3G-SDI
Overshoot: <10% of amplitude
Jitter: <0.2 UI pk-pk SD-SDI
          <0.2 UI pk-pk HD-SDI
          <0.3 UI pk-pk 3G-SDI
​
HDMI Input/Output
Standards: HDMI 1.3（CEA-861-B）2.25Gbps
Signal Format: 480i, 576i, 720p50, 720p59.94, 1080i50, 1080i59.94, 1080p50, 1080p59.94
Connector: HDMI
Equalization: 0-15m

*Specifications are subject to change without notice

---

Ordering Information>>>

HDC6830N
HD-SDI Down Converter with Audio Processor

HDC6830NS
HD-SDI Down Converter with Audio Processor and Synchronizer

HUC6830N
SD-SDI Up Converter with Audio Processor

HUC6830NS
SD-SDI Up Converter with Audio Processor and Synchronizer

HCC6830N
HD/SD-SDI Up / Down / Cross Converter with Audio Processor

HCC6830NS
HD/SD-SDI Up / Down / Cross Converter with Audio Processor and Synchronizer

HD6800-OPT-HIO
3G/HD HDMI In/Output Option for De-embedder and Frame Sync Module

HD6800-UPG-3G
​3G Signal Authorization Code
