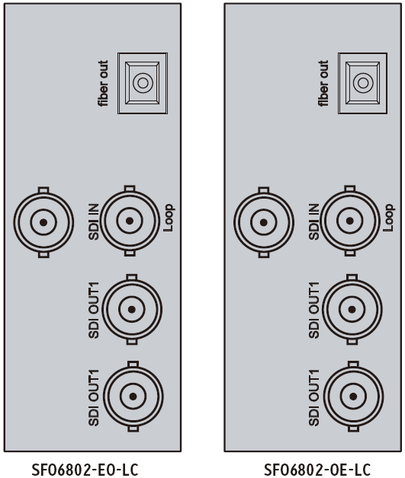

SFO6802-EO/OE-LC

Download Brochure

---

SD-SDI Optical Transmitter/Receiver---- Bidirectional

The SFO6802-EO/OE-LC is a high-speed optical transmission module, which converts 1ch of SDI/ASI (TS stream) signal to 1ch of FMTS optical signal with high-precision RCR rectification, and this signal can be transmitted to the receiving ends of the transmission module (In great distances) with fiber optical cables; the FMTS optical signal in the receiving ends of
SFO6800-EO-LC can be output as an SDI/ASI signal with high-precision RCR rectification. It supports unidirectional / bidirectional transmission through single/dual fiber.
This module features full digital, real-time, delay-less and high speed transmission, the transmission distance can reach about 100km, and the quality meets broadcast standards.
It is mainly applied to internal playout for TV stations, studios, programming, CATV front-end and other distance transmissions.

---

Features  >>>

• Compatible with SDI and ASI signal
• Auto sensing of SD-SDI and ASI signal
• Supports SMPTE259M, SMPTE297M, SMPTE310 and SMPTE305​
• High precision PCR correction, average PCR jitter within 20-60ns​
• 12 bit signal precision
• Auto sensing of SDI143, SDI177 and SDI270Mbps
• Transmitter output optical power is 0 to -14dBm (Auto-sensing)
• Supports bidirectional single mode

---

Specifications  >>>

Video Characteristics
Channel No.: 2Ch(Bi-directional)
Signal Format:
​SMPTE292，SMPTE259M, SMPTE305 and SMPTE310
Data Rate: 19.4M—270M Gbps
Resistance: 75Ω
Return Loss: >15dB@1GHz
SDI Signal Level: 800mV
​
Optical Characteristics
Wavelength (Input/output): 1310/1550nm
Transmit Power: -3dBm
Broadband Spectral: 3nm
Received Power (Min): -30dBm
Received Power (Max): -23dBm
Baud Rate (Positive) : 270M Gbps

Interface
Video: BNC
Optical: FC/ST/SC

Environment Characteristics
Working Temperature: -20℃to +70℃
Storage Temperature: -30℃to +80℃
Humidity: 0% to 90%
Induction: EN50130-5
​
Electromagnetic Compatibility
Radiation: EN50081-1, EN55022-B, CE, FCC
Magnetic Susceptibility: EN50130-4, EN50082-1

*Specifications are subject to change without notice

---

Ordering Information>>>

SFO6802-EO/OE-LC（40km）
SD-SDI Optical Transmitter/Receiver---- Bidirectional
