SD-SDI Frame Sync Module

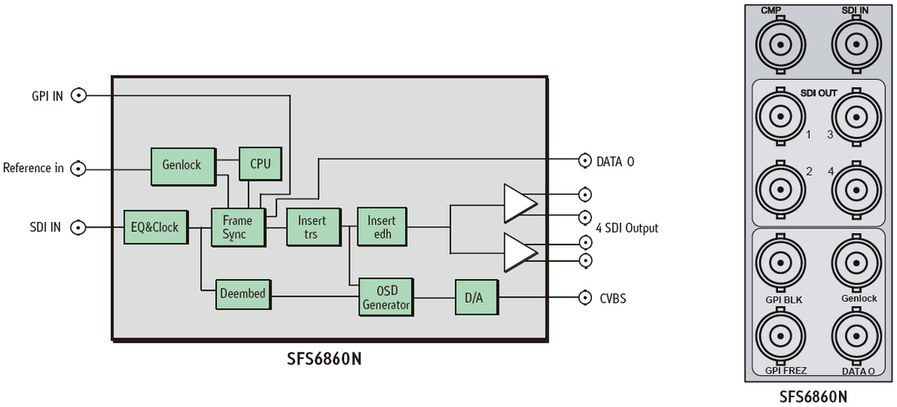

The SFS6860N is an SD-SDI frame synchronizer, which can synchronize with one genlock reference signal and can provide one audio synchronization signal (DATA I/O) for an audio processing module. It can work in both the synchronization and delay mode, supporting adjustable delay which is less than one frame. It supports both forced black field output and forced freeze frame; which are controlled by GPI, and retains the ancillary data of the signal source and supports one channel of analog composite video output.

---

Features  >>>

• 10 bits serial 4:2:2 video frame synchronous processing
• Supporting 525/625 standard input, either auto detect or manually set
• EDH reinsertion
• Retaining ancillary data
• Forced black field output and forced freeze frame output controlled by GPI
• Delay and synchronization mode

• Detection of the input video loss, freeze frame and black field
• Support manually controlled freeze frame and black field
• Adjustable horizontal and vertical phase
• 4 Channels Embedded audio monitoring
• Embedded Audio loss and overshoot monitoring
• Detect the compatibility between reference signal input and SDI input

---

Specifications  >>>

SDI Video Input​
Standards:
SMPTE 259M;270 Mbps,525/625 SDI component
Impedance: 75 ohm
Return Loss: >18dB to 360MHz
Connector: BNC (IEC169-8)
Equalization: auto-equalizing to 30dB@270 Mbps

SDI Video Output
Standards:
​SMPTE 259M-C;270 Mbps;525/625 SDI component
Connector: BNC (IEC169-8)
Impedance: 75 ohm
Return Loss: >18 dB to 270 MHz
Signal Level: 800 mV +/-10%
DC Offset: 0 V ± 0.5
Rise and Fall Time: 400-1500 ps (20% to 80% of amplitude)
Overshoot: <10% of amplitude
Jitter: <0.2 UI (740 ps) peak to peak value,
          Typical value<500ps
​
Analog Composite Input​
Standard: analog synchronize signal or analog video signal
Impedance: 75 ohm
Input level: 0.5 to 2 V​

Analog Composite Video Output​
Standard: NTSC, PAL or PAL-M
Amplitude: 1Vp-p +/-3dB
Impedance: 75 ohm
Return Loss: >40 dB to 5 MHz
DC Offset: 0V±0.05 V
Frequency Response: ±0.2 dB to 5 MHz
IDifferential Gain: <1%
Differential Phase: <1.5°
Group Delay: +/-10ns to 5 MHZ​

DATA Output
Output Impedance: 75 ohm
Output Level: 500mv pk to pk (minimum)
Output Cable length: 100 meter
Return Loss: <-20dB​
​
Power Consumption
Power: 3.0W
Positive Rail: 450 mA
Negative Rail: 10 mA

*Specifications are subject to change without notice

---

Ordering Information>>>

SFS6860N          SDI Synchronization module
