SMX6811N(S)/SMX6812N(S)

Download Brochure

Download User Manual

---

AES Audio Embedding Module with AES Output

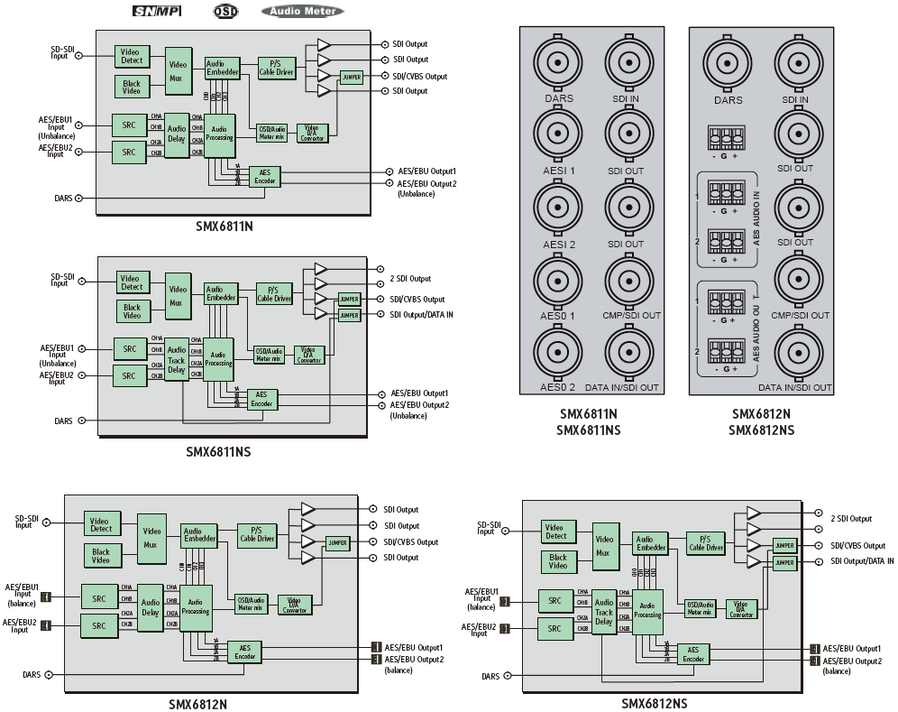

The SMX6811N(S)/SMX6812N(S) is a AES audio embedding module with AES output.
The modules all support 2ch AES audio embedding. The user can choose input audio or other audio synthesized by system and embed them into any audio group.
Each module has its distinct feature as follows:
The SMX6811N has 2ch unbalanced AES inputs as well as 2ch unbalanced outputs;
The SMX6811NS has 2ch unbalanced AES inputs as well as 2ch unbalanced outputs, and audio tracking;
The SMX6812N has 2 pairs (4ch) of balanced AES inputs as well as 2 pairs (4ch) of balanced AES outputs;
The SMX6812NS has 2 pairs (4ch) of balanced AES inputs as well as 2 pairs (4ch) of balanced AES outputs and audio tracking.

---

Features  >>>

• Audio embedding in 525/625 video standard
• 2 pairs (4-channel) AES audio embedding
• 20-bit and 24-bit audio embedding
• Both embedded audio group and embedded mode are selectable
• AES output
• Audio tracking (only applicable to SMX6811NS&SMX6812NS)
• Embedded SDI output with reclocking
• One analog composite video output monitoring

• SD-SDI video input auto detection and input status feedback
• 4-channel audio metering display
• Embedding tone signal at fixed frequency rate
• Maximum 1.3 second audio delay
• Audio gain adjustment, invert and mute
• Input EDH monitoring
• Re-insert EDH
• Freeze frame, black field and video loss detection
• Audio loss and audio overload detection

---

Specifications  >>>

SDI Video Input​
Video Standard:
​SMPTE259 M-C; 270 Mbps, 525/625 component
Connector: BNC ( IEC 169-8)
Impedance: 75 ohm
Return Loss: >18 dB to 270 MHz

Balanced AES Inputs
Input: 2 pairs (SMX6811N and SMX6811NS)
Connector: 3-pin (male)
Sensitivity: <200 mV
Impedance: 110ohm + /- 20% (0.1 to 6 MHz)
Maximum Input Signal: 10 V (peak to peak)
CMR Ratio: 0-7V (0 to 20 KHz)

Unbalanced AES Input
​Input: 2 pairs (SMX6812N and SMX6812NS)
Connector: BNC (IEC 169-8)
Impedance: 75 ohm
Return Loss: >25 dB, 0.1 to 6.0 MHz
Sensitivity: <100 mV​

Analog Composite Video Output
Standards: NTSC, PAL or PAL-M
Level: 1Vp-p +/-3dB
Impedance: 75 ohm
Return Loss: >40 dB to 5 MHz
DC Offset: 0V±0.05 V
Frequency Response: ±0.2 dB to 5 MHz
Differential Gain: <1%
Differential Phase: <1.5°
Group Delay: +/-10ns to 5 MHZ

SDI Video Output
Video Standard:
SMPTE259M-C; 270Mbps, 525/625 component
Connector: BNC ( ICE 169-8)
Impedance: 75 ohm
Return Loss: >18dB to 270MHz
Signal Level: 800mV+/-10%
DC Offset: 0V+/-0.5V
Rise and Fall Time: 400-1500ps (20%-80% of amplitude)
Overshoot: <10% of amplitude
Jitter: <0.2UI (740ps) peak to peak

Balanced AES Output
Output: 2 pairs (SMX6811N and SMX6811NS)
Sensitivity: < 200 mV
Impedance: 110ohm + /- 20% (0.1 to 6 MHz)
Level: 2-7 Vpp
Rise and Fall Time: <20 ns
Jitter: +/-20 ns

Unbalanced AES Output
​Output: 2 pairs (SMX6812N and SMX6812NS)
Connector: BNC(IEC 169-8)
Impedance: 75 ohm
Return Loss: >25dB, 0.1 to 6MHz
Level: 1.0V+/-10%
Rise and Fall Time: 30-44 ns
Jitter: +/-20 ns
​
Power Consumption
Power: 3.25W
Positive Rail: 500 mA
Negative Rail: 10 mA

*Specifications are subject to change without notice

---

Ordering Information>>>

SMX6811N
2-channel unbalanced AES/EBU embedding module with 2 channels of unbalanced outputs

SMX6811NS
​2-channel unbalanced AES/EBU embedding module with 2 channels of unbalanced outputs and audio tracking

SMX6812N
4-channel balanced AES/EBU embedding module with 4 channels of balanced AES/EBU outputs

​SMX6812NS
4-channel balanced AES/EBU embedding module with 4 channels of balanced AES/EBU outputs and audio tracking
