VRG6850N

Download Brochure

Download User Manual

---

Analog Black Burst Generator

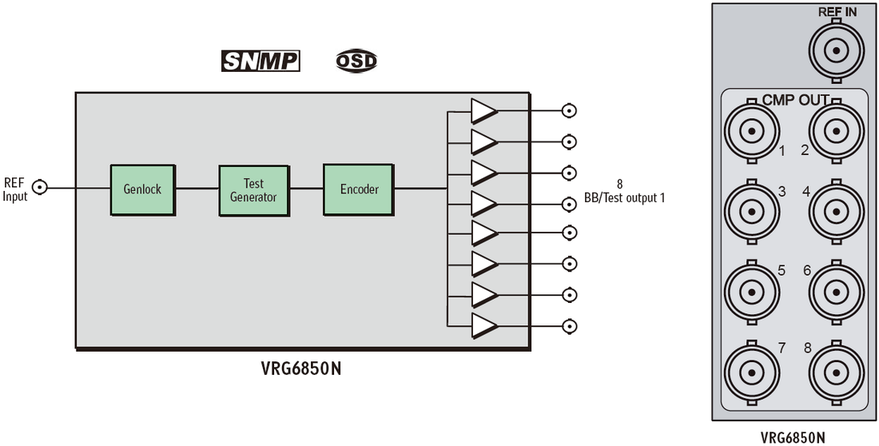

VRG6850N is an analog black burst generator. It has 8ch black burst outputs and 1ch of external genlock input.
VRG6850N can generate high stable black burst with its internal temperature-compensation crystal oscillator black field signal.

---

Features  >>>

• High stable analog black field generating

• Adjustable phasing

•  Color Bar generating

• Support Reference Signal

---

Specifications  >>>

Analog Composite Output
Analog Composite Output: NTSC, PAL-B
Output Number: 8
Impedance: 75 ohm
Connector: BNC(IEC 169-8)
Return Loss: >40dB to 5.75 MHz
Quantization: 12 bits
DC Offset: +/- 5mV

Reference Input
Standard: Analog color bar or analog black burst
Connector: BNC(IEC 169-8)
Impedance: 75 ohm

Phasing
Range Infinite: 1 frame
Resolution: 0.5ns

Master Crystal Stability
Inital: 2 PPM
vs. Time: 2 PPM/Year
vs.Temperature: 2 PPM, 0°C to +50°C

Power Consumption
Power: 2.2W
Positive Rail: 300 mA
Negative Rail: 35 mA

*Specifications are subject to change without notice

---

Ordering Information>>>

VRG6850N
Analog Black Burst Generator
