ADA6801N/ADA6802N

Download Brochure

Download User Manual

---

Analog Audio Distribution Amplifier

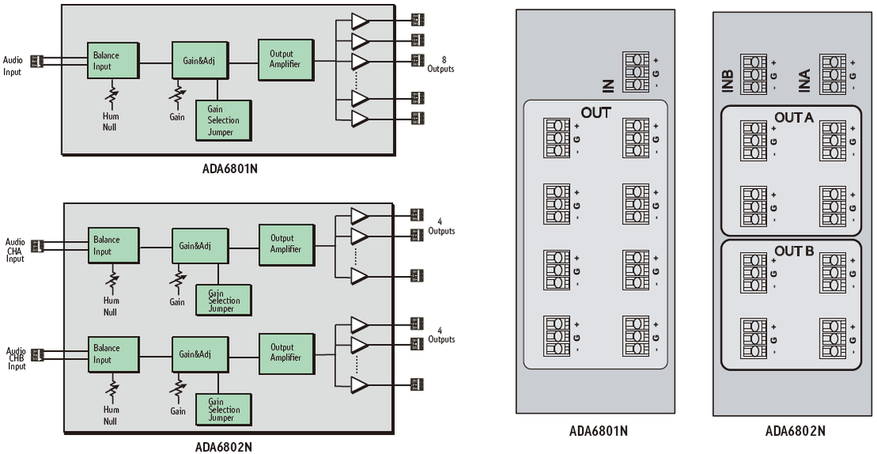

The ADA6801N/ADA6802N is an analog audio distribution amplifier module. The ADA6801N has one input and eight outputs; and the ADA6802N has two inputs each with four outputs, or it can be set for eight outputs via jumper.
The ADA6801N/ADA6802N adopt independent output module to ensure the excellent isolation between channels. Both of the modules feature a high signal to noise ration: flat frequency response and low distortion.

---

Features  >>>

• Dedicated integrate circuit used results in the decrease in number of components and improvement in reliability
• +28dBu maximum output level
• -6~+33dB gain range for adjustment
• Low cost, high quality audio distribution amplifier

---

Specifications  >>>

Balanced Analog Audio Input
Connector: 3-pin connector
Signal Type: Balanced
Input Impedance: >30KΩ
Maximum Input Level: +28 dBu
CMR Range: +/-20V
CMR Ratio: 90 dB @ 60 Hz
Gain Range: -6~+33dB

Balanced Analog Audio Onput
Number of Outputs: 8
Connector: 3-pin connector
Signal Type: Balanced
Output Impedance: 66 ohm
Maximum Output level: +28 dBu

Performance
SNR: >90 dB @ unity gain, 20 Hz to 20 kHz relative to +8 dBu signal, unweighted
Frequency Response: +/-0.05 dB 20 Hz to 20 kHz relative to 1 kHz @ unity gain
THD: <0.02%, SMPTE @ +18 dBu
Crosstalk: >85 dB isolation, 20 Hz to 20 kHz
Output Isolation: >70 dB, 20 Hz to 20 kHz

Power Consumption
Power: ADA6801N:2W ADA6802N:3.25W
Positive Rail: ADA6801N:300mA ADA6802N: 500mA
Negative Rail: ADA6801N:0mA ADA6802N: 0mA

*Specifications are subject to change without notice

---

Ordering Information>>>

ADA6801N
Analog audio distribution amplifier 1x8

ADA6802N
Dual analog audio distribution amplifier 2-1x4, or set 8 outputs via jumper
