LCM240-E
Overview >>>
|

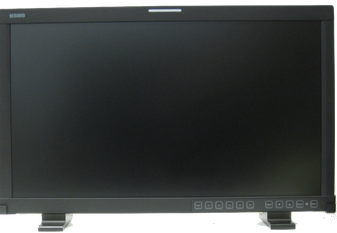

LCM240-E - High quality image in a Economical 24” DCI-P3 Monitor for Field Acquisition and Post Production.
Designed for today’s film production workflow, the LCM240-E displays DCI-P3, SMPTE2020SDR*and REC709 Color spaces. Image processing is achieved with out proprietary 12bit Image Lude' Engine. What is displayed on the screen are processed as what we call "LOOK PROFILES" That have the industries' highest accuracy LUT technology. Included are 10 camera de-log LUTs, and 4 user LUTs, that for user convenience, are pre-loaded with film look LUTs. |
|
With a large 24" screen, the LCM240-E provides easily utilized production assistance tools that are designed for high performance accuracy. Assist functions include, Waveform with Vector Scope, Zebra, False Color and Focus Assist which can be utilized with SDI, HDMI inputs. The LCM240-E is light weight and can operate for 4 hours (130Wh battery). Unmatched color reproduction is assured by CalMan and Light Space color calibration and applied as our Look Profiles.
To meet needs for field applications, optional accessories include V or AB mount battery adapters, plus additional options available in March will include: cstand adapters, accessory mounting plates, screen protector, sun hood, and waterproof hard case, with more accessories in design. |
|
*REC2020 is limited to applications for UHD. Use of REC2020 color space is highly accurate but is not in wide use at this time.
Features >>>
DCI-P3 Gamut for the Film Production
The LCM240-E supports DCI-P3, which is the standard color space used in most Ecinema projectors. This is unique to the LCM240-E and allows you to make full use of your camera's wide gamut without clipping. The feature is particularly important in digital film production.
|
|
|
De-log LUTs for Popular Camera
Each LCM240-E is precision calibrated for DCI-P3, REC2020SDR, and REC709 color spaces.
The LCM240-E has 10 pre-loaded camera de-log LUTs that convert to REC709 Color Space thus avoiding the “flat” images that confuse the client.
The LCM240-E has 10 pre-loaded camera de-log LUTs that convert to REC709 Color Space thus avoiding the “flat” images that confuse the client.
|
AVAILABLE DE-LOG LOOK PROFILES
PANA VLOG V709 CANON CINCL2 WDR CANON CINCL1 WDR PANAVISION R709 SONY SL3C L709A SONY SL@ LC709A RED RLF RG3 BMD PC FILM V2 BMD CC FILM V ARRI LOG 70 |
Four User LUTs with Pre-loaded Film Look LUTs
|
Kodak Chroma
|
Kodak Portra 400
|
Fuji Velvia 50
|
Kodak Elite Color 400
|
Exposure-assisted Functions
|
ZEBRA is used to display images to adjust the camera exposure. Signal luminance can be set from 0-100 to fill the relevant image area whose luminance is higher than the ZEBRA LEVEL with a zebra pattern.
|
FALSE COLOR generates an artificial luminance map of the input source to identify over exposed areas.
|
|
|
|
|
Zebra
|
False Color
|
Color to Luminance Chart
|
Focus Assist
FOCUS ASSIST will display images on the screen with intensified edge to aide camera focus. The intensified edges are those areas whose difference value exceeds the reference focus level (0-100). The intensified edge is displayed in a choice of Red, Blue or Green.
|
|
|
Original Video
|
Red Color Focus Assist Applied
|
Anamorphic De-squeez
|
This feature enables de-squeeze for HDMI, HD-SDI, 3G-SDI and 2K signals coming from a camera utilizing anamorphic lens.
Screen Aspect Formats Include: 16x9 4x3 x1.3 Anamorphic De-Squeeze x2.0 Anamorphic De-Squeeze x2.0 MAG Anamorphic De-Squeeze |
Waveform and Vector Scope |
Audio Meter |
|
Waveform and Vector Scope can be used for HDMI, HD-SDI, 3G-SDI and 2K signals. The Waveform can be set for upper and lower luminance threshold levels indicated by color
|
Up to 16 Channels of SDI embedded or 2 channels of HDMI audio levels can be displayed with a choice of options including level reference settings and gain.
|
|
|
Specifications >>>
|
Display
Size: 24" Resolution: 1920×1200 Signal Process: 10bits Aspect Ratio: 16:10 Color Depth: 1.073G Brightness: 250nits Contrast Ratio: 1000:1 Backlight: LED Viewing Angle: 178°x 178° |
Input
3G/HD/SD-SDI: BNC×2 HDMI: HDMI×1 Output 3G/HD/SD-SDI: BNC×2 Audio Internal Speakers: Stereo Phone Jack: 3.5mm Mini-Jack |
Control
Ethernet: Ethernet (10/100M adaptive RJ45)×1 Power AC In: 100-240V 50/60Hz DC In: 12-16.8V Power Consumption: 63W |
Specifications are subjected to change without notice.
