Mega 22S Production Monitor
​21.5'' Color Self-Calibration 1500 nits Brightness Camera Field Monitor

Shop Now

Download User Manual

Product Description

---

​Detail 1

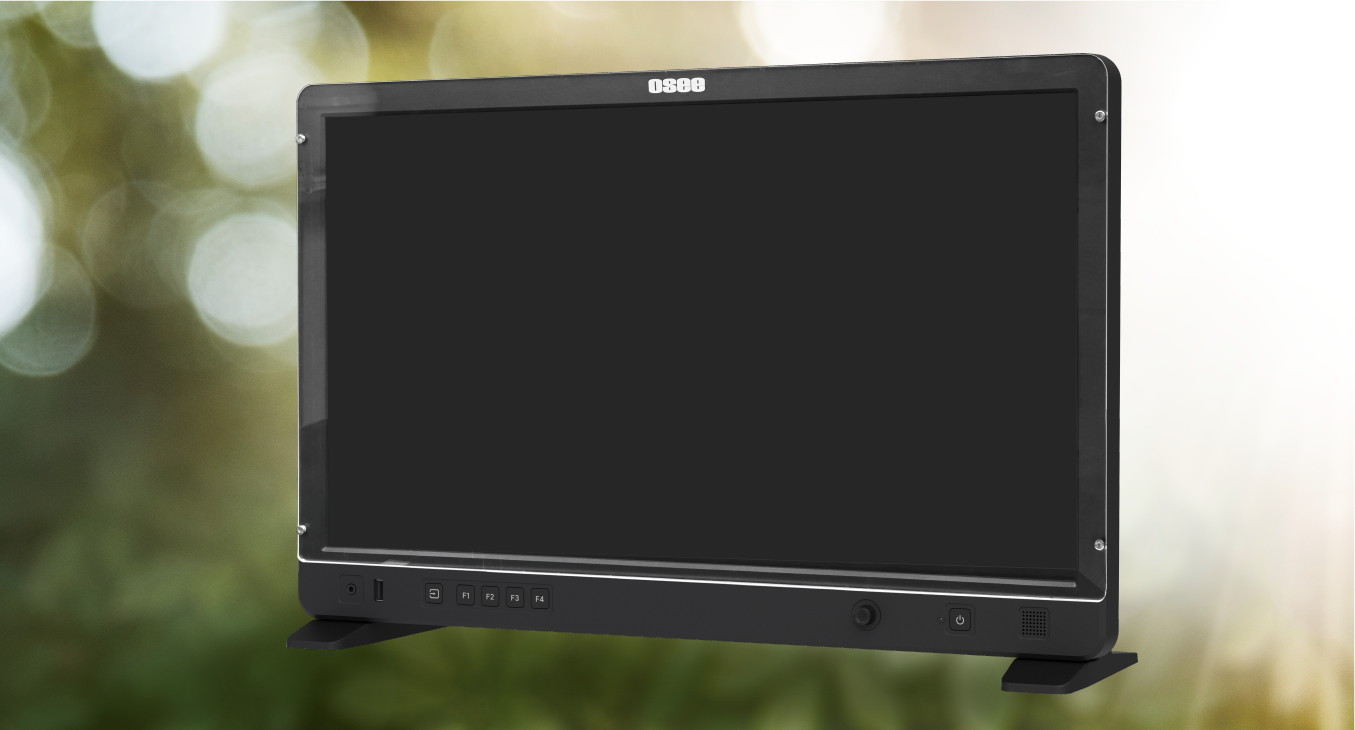

There are 4 Mounting Holes on the front to install the protective screen without disassembly.

​Detail 2

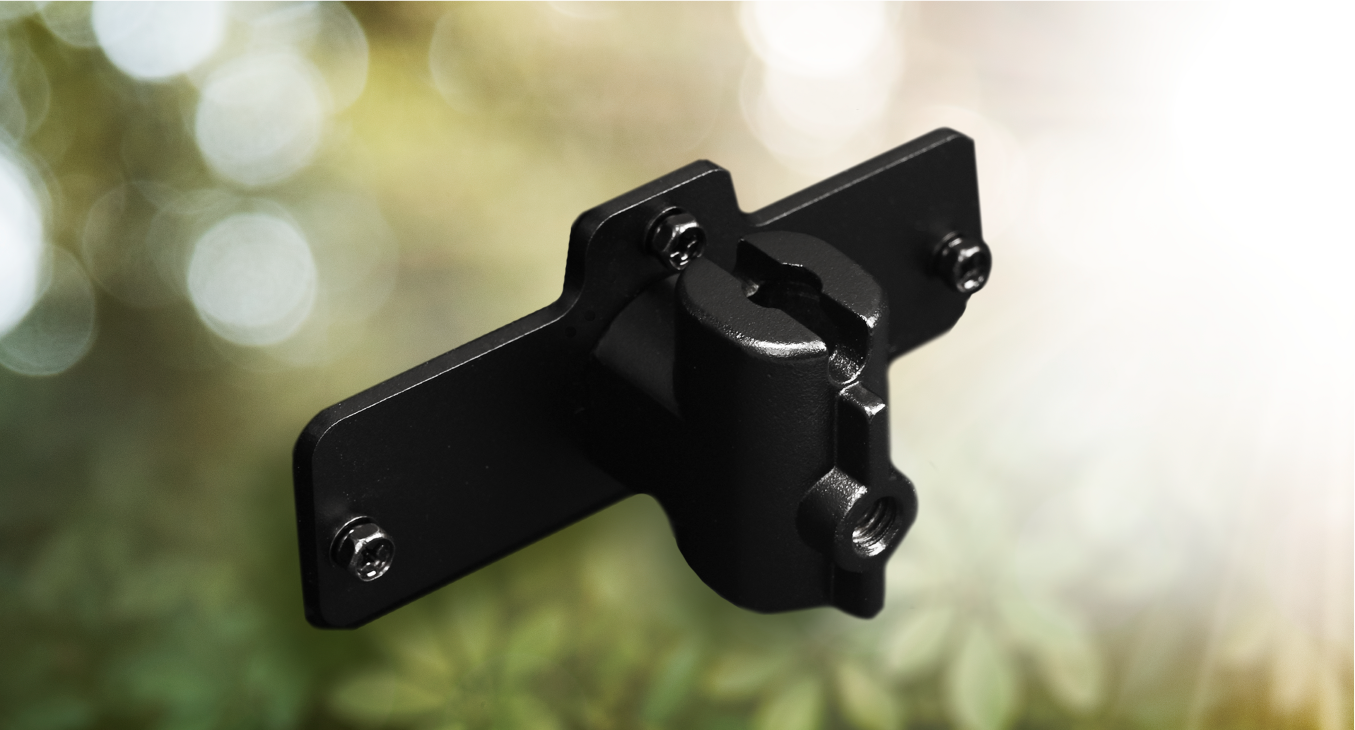

​The latest-designed C-Stand Adapter allows you to mount it on the stand with one hand.

​What's In the Box​

Mega 22S
Dedicated foam for Pelican 1600
Sun hood
Battery plate (V or AB)
C-stand adapter
Power cable
Cheese Plate

---

​​Specifications​

Panel Size:    21.5inch
Resolution:   1920X1080
Brightness:    1500nits
Contrast:        1100:1
Color bit Depth: 10 bits

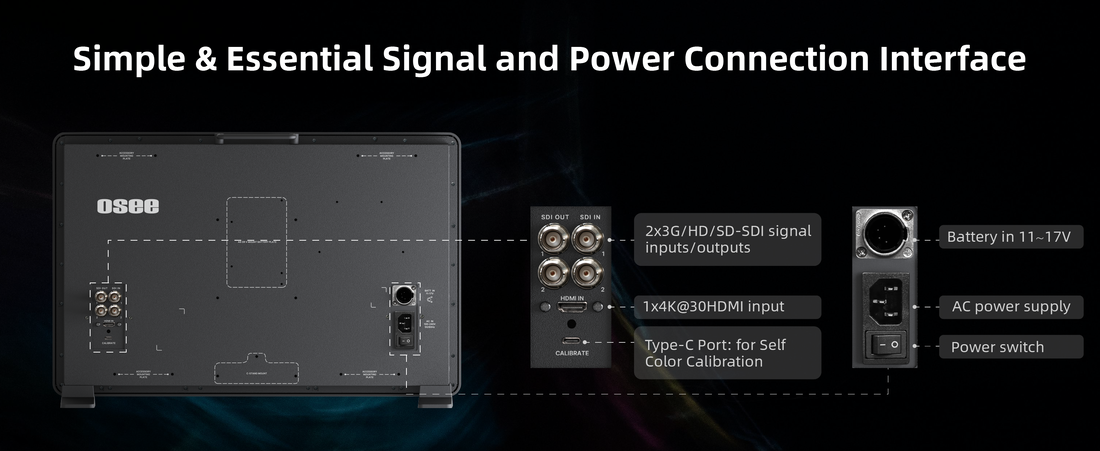

Video IO
2x3G/HD/SD-SDI signal inputs/outputs, 1x4K@30HDMI input

SDI Format
2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf
HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
HD (1280x720): 50/59.94/60P

HDMI Format
4K (4096x2160): 23.98/24/25/29.97/30P
UHD (3840x2160): 23.98/24/25/29.97/30P
2K (2048x1080): 23.98/24/25/50
HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I
HD (1280x720): 50/59.94/60P

Other IO
USB Type-A x1: 3D-LUT upload, firmware upgrade
USB Type-C x1: internal color calibration via x-rite i1 display pro
3.5mm mini Jack: ear phone



​

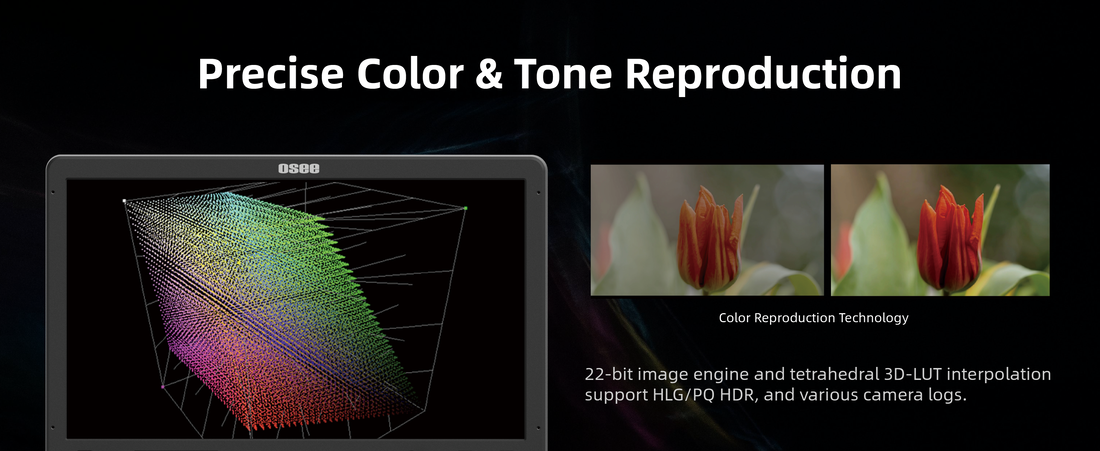

3D-LUT, Camera Log

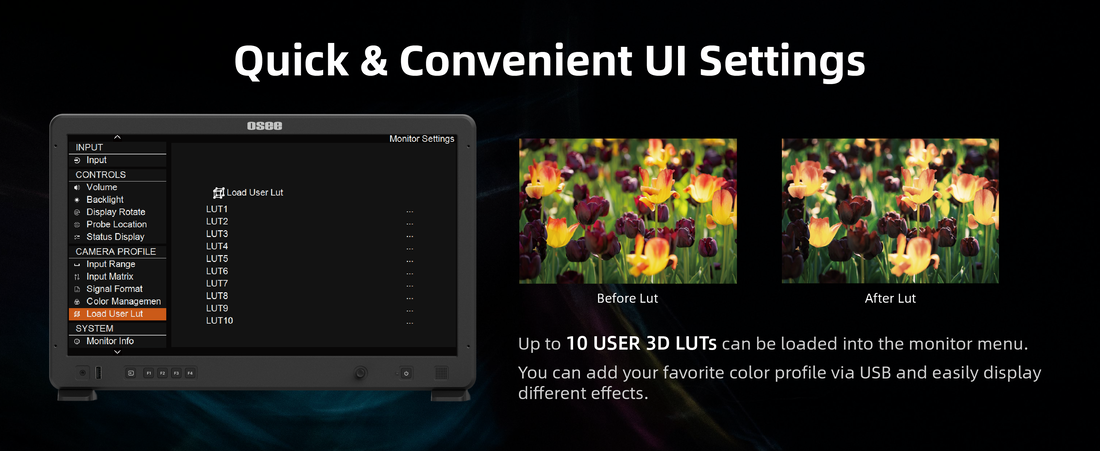

3D-LUT: 10 User 3D LUTs
Standard  Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film,4K Film,4.6K Film; Canon C Log,C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6

Power Supply
100-240V (50/60Hz) AC / 11~17V/5A (XLR Pin4)

Power Consumption: 46W
​
Framing Tools:  Aspect; Safe; Center; Crosshatch; Anamorphic

Exposure Tools:  False Color; Zebra; Waveform; Vector; Histogram

Focus Tools:  Focus Assist; Peaking
​
 Other Tools:
DE-LOG; MULTI-SCOPES; Display Rotate; Audio Meter (Only SDI); Time Code (Only SDI)

Weight
6.4Kg

What's in the Box
Mega 22S, dedicated foam for Pelican 1600, sun hood,  battery plate (V or AB), C-stand adapter, power cable, cheese plate

*Specifications are subject to change without notice!
