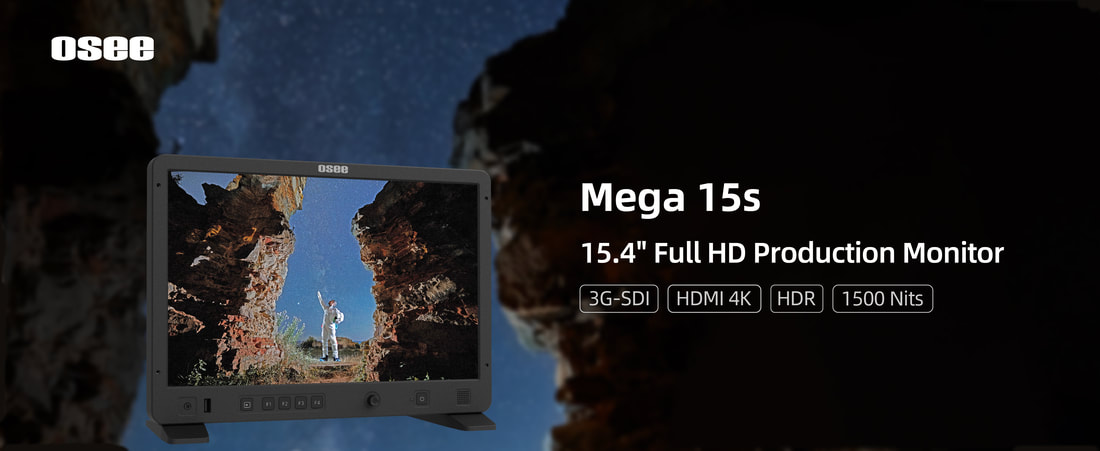

New-in Mega 15S 15.4'' Production Monitor
Download User Manual
Product Description
Specifications
Panel Size: 15.4 inches
Resolution: 1920X1200
Color bit: Depth10 bits

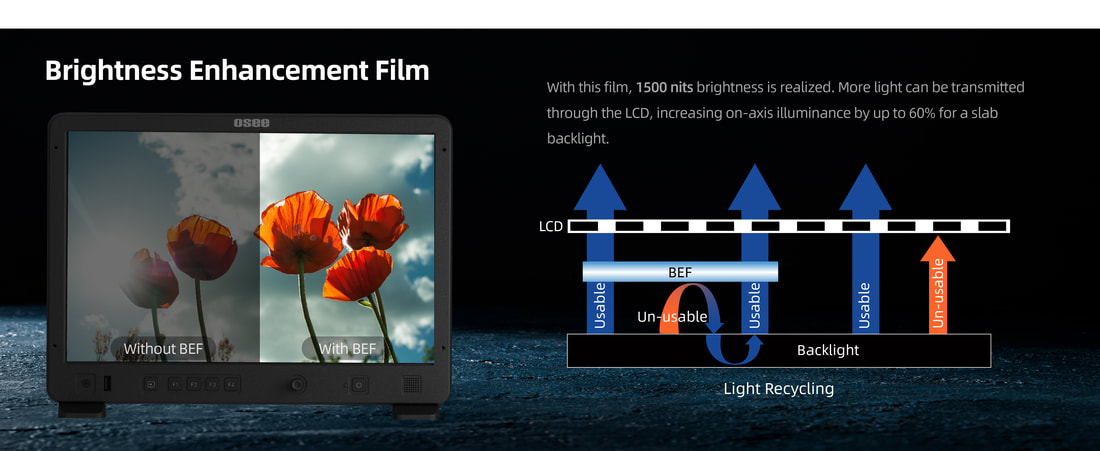

Brightness: 1500 nits
Contrast: 1650:1
SDI Format:
2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I HD (1280x720): 50/59.94/60P
HDMI Format:
4K (4096x2160): 23.98/24/25/29.97/30P UHD (3840x2160): 23.98/24/25/29.97/30P 2K (2048x1080): 23.98/24/25/50 HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I HD (1280x720): 50/59.94/60P

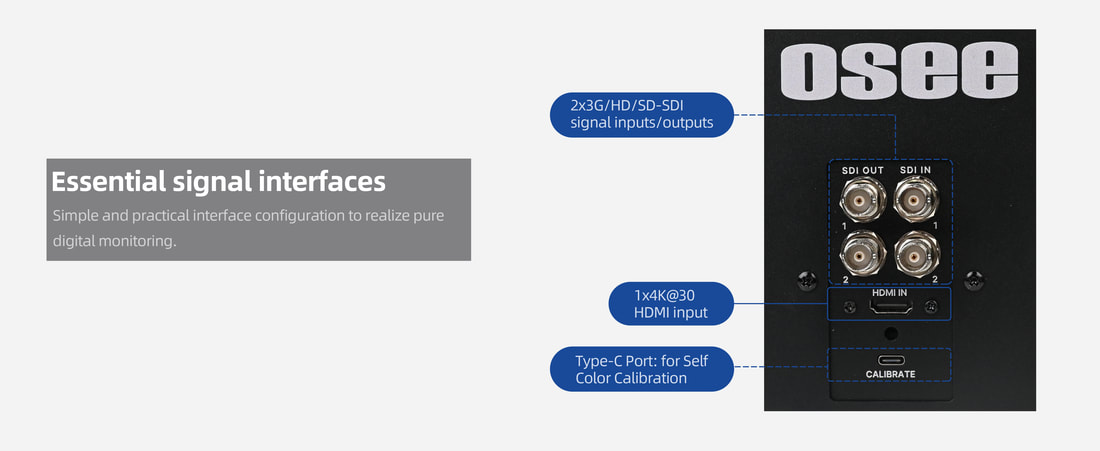

Video IO: SDI In x2, SDI Out x2, HDMI In x1

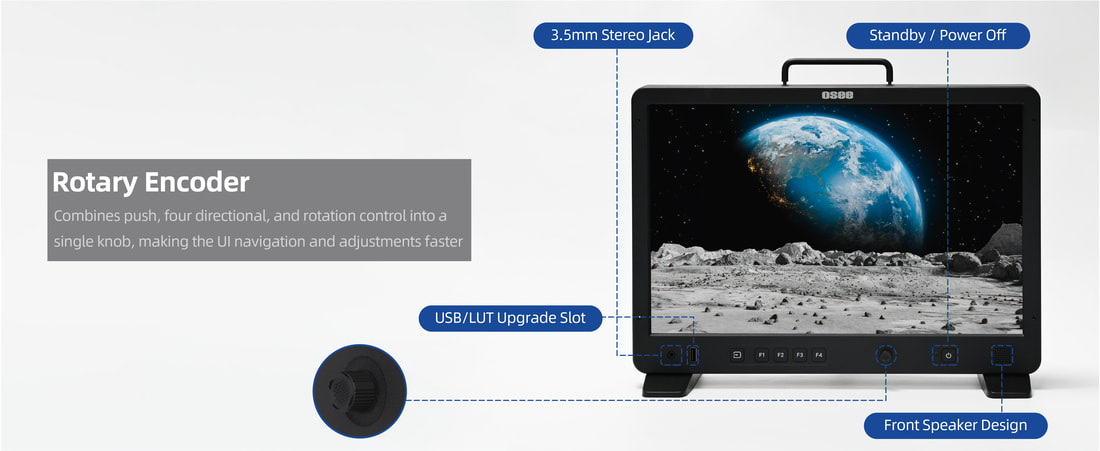

Other IO: USB Type-A x1: 3D-LUT upload, firmware upgrade USB Type-C x1: internal color calibration via x-rite i1 display pro 3.5mm mini Jack: ear phone
Power Supply: 100-240V (50/60Hz) AC / 11~17V/3A (XLR Pin4)
3D-LUT: 10 User 3D LUTs
Camera Log:
Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film,4K Film,4.6K Film; Canon C Log,C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6
Framing Tools: Aspect, Safe, Center, Crosshatch, Anamorphic
Exposure Tools: False Color, Zebra, Waveform, Vector, Histogram
Focus Tools: Focus Assist, Peaking
Other Tools: DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI)
Power Consumption: 22W
What's in the Box

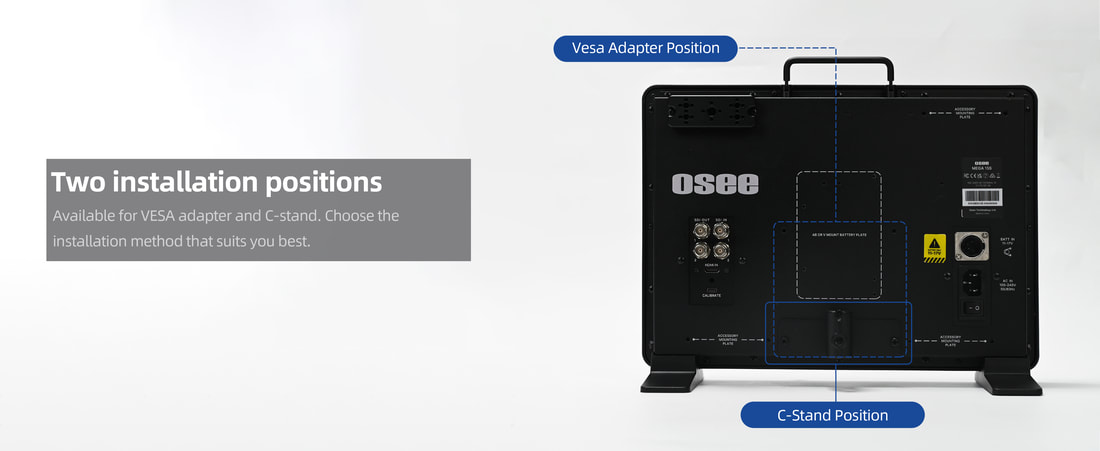

Mega 15S, portable soft case(Sun hood), battery plate (V or AB), c-stand adapter, power cable, cheese plate.
Resolution: 1920X1200
Color bit: Depth10 bits
Brightness: 1500 nits
Contrast: 1650:1
SDI Format:
2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I HD (1280x720): 50/59.94/60P
HDMI Format:
4K (4096x2160): 23.98/24/25/29.97/30P UHD (3840x2160): 23.98/24/25/29.97/30P 2K (2048x1080): 23.98/24/25/50 HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I HD (1280x720): 50/59.94/60P
Video IO: SDI In x2, SDI Out x2, HDMI In x1
Other IO: USB Type-A x1: 3D-LUT upload, firmware upgrade USB Type-C x1: internal color calibration via x-rite i1 display pro 3.5mm mini Jack: ear phone
Power Supply: 100-240V (50/60Hz) AC / 11~17V/3A (XLR Pin4)
3D-LUT: 10 User 3D LUTs
Camera Log:
Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film,4K Film,4.6K Film; Canon C Log,C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Lgo3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6
Framing Tools: Aspect, Safe, Center, Crosshatch, Anamorphic
Exposure Tools: False Color, Zebra, Waveform, Vector, Histogram
Focus Tools: Focus Assist, Peaking
Other Tools: DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI)
Power Consumption: 22W
What's in the Box
Mega 15S, portable soft case(Sun hood), battery plate (V or AB), c-stand adapter, power cable, cheese plate.
*Specifications are subject to change without notice!
